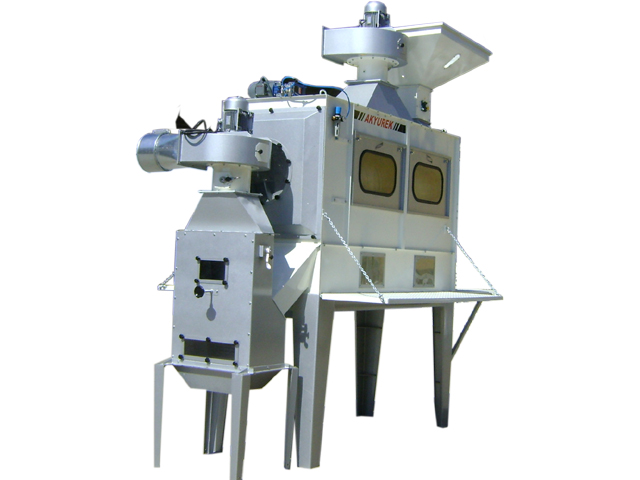

MMCTECH SPBT-0100 & SPBT-0200 Batch Friction Seed Polisher Machine
The MMCTECH SPBT-0100 and SPBT-0200 Batch Friction Seed Polisher Machines are professional seed polishing, scarification, surface cleaning, and seed enhancement systems designed for sunflower seeds, pulses, grass seeds, flower seeds, vegetable seeds, legumes, specialty seeds, and selected agricultural products. The SPBT Series is developed for seed processors that need cleaner seed surfaces, controlled friction polishing, reliable dust removal, batch-based product conditioning, and consistent seed quality improvement in modern seed processing plants.
This machine family is a strong solution for customers searching for a seed polishing machine, batch friction seed polisher, grain polishing machine, wheat polishing machine, wheat polisher, grain polisher, grain polisher machine, beans polishing machine, vegetable seed polishing machine, semi automatic polishing machine, automatic seed polisher, or seed processing equipment for commercial seed preparation and specialty crop processing.
The MMCTECH SPBT Series is designed to improve seed appearance, reduce surface impurities, remove seed hairs, wings, ears, husk fragments, light dust, loose plant material, and unwanted surface particles depending on crop type and process target. It can also support controlled scarification applications where seed coat surface modification is required for selected products. The final process result depends on seed type, seed sensitivity, drum timing, friction level, aspiration setting, batch size, product moisture, and customer quality requirement.
The working principle of the MMCTECH Batch Friction Seed Polisher is based on batch loading, friction-based drum action, controlled rotation, aspirator support, air recycling, load cell measurement, and discharge control. Product enters the hopper and is measured through load cells. The product is then processed inside the friction drum where controlled movement and product-on-product contact help polish and clean the seed surface. The aspirator removes dust, husk particles, light impurities, and loosened material during processing. After the selected polishing cycle is completed, the discharge system unloads the finished product for downstream conveying, grading, treating, bagging, packaging, or storage.

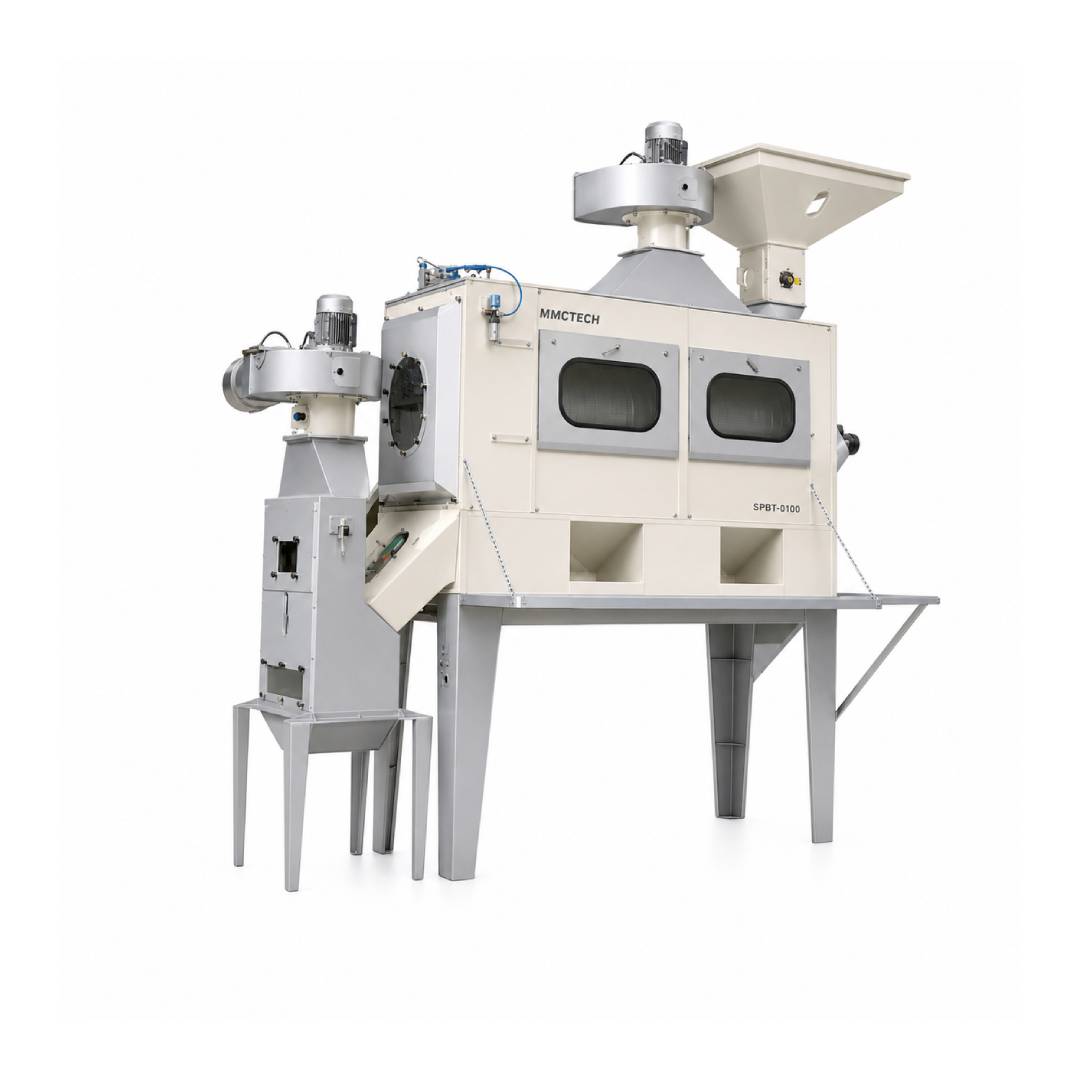

The SPBT-0100 is the compact single-drum model for batch seed polishing, scarification support, surface cleaning, and seed enhancement applications. It is suitable for processors that need a professional batch friction polisher with integrated Z elevator, load cells, 21.2 cu ft hopper capacity, drum drive motor, discharge motor, aspirator, air recycling system, and compact machine dimensions.
The SPBT-0200 is the higher-capacity model for larger batch polishing operations. It includes dual drum drive motors, dual discharge motors, dual aspirator units, a wider machine body, and larger air recycling capacity. This model is suitable for facilities that require increased polishing throughput, stronger aspiration support, and more industrial seed surface cleaning capacity.
The MMCTECH SPBT Series is especially useful for sunflower seed polishing, grass seed conditioning, flower seed cleaning, vegetable seed preparation, pulse and legume scarification, specialty seed surface cleaning, and seed enhancement applications where a smoother, cleaner, and more uniform seed surface is required. For seed companies, a consistent polishing step can improve product appearance, reduce loose dust, support better handling, and prepare product for downstream treatment, color sorting, packaging, or market preparation.
For pulses and legumes, controlled friction can help remove surface dust and improve product presentation. For grass and flower seeds, the machine can assist in reducing hairs, wings, and light surface material that may affect flowability and final cleaning quality. For sunflower seed and selected oilseed applications, polishing can support cleaner visual appearance and more consistent surface quality. For vegetable seed and specialty seed processors, the SPBT Series provides a batch-based platform that can be adjusted according to product sensitivity and final quality goals.
The SPBT Series can be supplied as a standalone batch friction seed polisher or integrated into a complete MMCTECH seed processing line with pre-cleaners, fine cleaners, gravity separators, destoners, spiral separators, indented cylinder separators, color sorters, seed treaters, conveyors, elevators, bagging machines, storage bins, dust collection equipment, and automation systems. In a complete line, seed polishing is commonly placed after cleaning and grading, before seed treatment, final inspection, weighing, bagging, packaging, or storage.
The SPBT-0100 includes machine dimensions of 110.2 x 43.3 x 141.7 in (2,800 x 1,100 x 3,600 mm), 4 load cells, 21.2 cu ft hopper capacity, 3.0 HP drum drive motor, 1.5 HP discharge motor, 5.4 HP aspirator, and 21.1 gal air recycling volume. The SPBT-0200 includes machine dimensions of 110.2 x 86.6 x 141.7 in (2,800 x 2,200 x 3,600 mm), 4 load cells, 21.2 cu ft hopper capacity, 2 drum drive motors, 2 discharge motors, 2 aspirators, and 39.6 gal air recycling volume.
MMCTECH manufactures the SPBT-0100 and SPBT-0200 Series for North America and international markets. The machines can be configured for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial electrical standards. MMCTECH can support model selection, product testing, batch process planning, aspiration configuration, conveyor integration, dust collection planning, automation support, spare parts planning, and complete seed processing line engineering according to crop type, facility layout, required capacity, and final seed quality target.
Best Ideal Seed Polishing and Scarification Applications
Sunflower Seeds, Grass Seeds, Flower Seeds, Vegetable Seeds, Pulses, Legumes, Beans, Lentils, Chickpeas, Clover, Forage Seeds, Specialty Seeds, Field Seeds, Selected Grain Seeds, Seed Surface Cleaning, Seed Hair Removal, Wing Removal, Dust Removal, Controlled Scarification, Batch Seed Polishing, and Seed Enhancement Applications.
Key Features of the MMCTECH SPBT Series
- Batch Friction Polishing: Uses controlled friction-based drum action for seed surface cleaning and polishing.
- Two Model Options: SPBT-0100 for compact batch polishing and SPBT-0200 for higher-capacity batch processing.
- Seed Scarification Support: Can support controlled surface modification for selected seeds depending on process target.
- Integrated Z Elevator: Supports product feeding into the polishing system.
- Load Cell System: 4 load cells support batch measurement and product control.

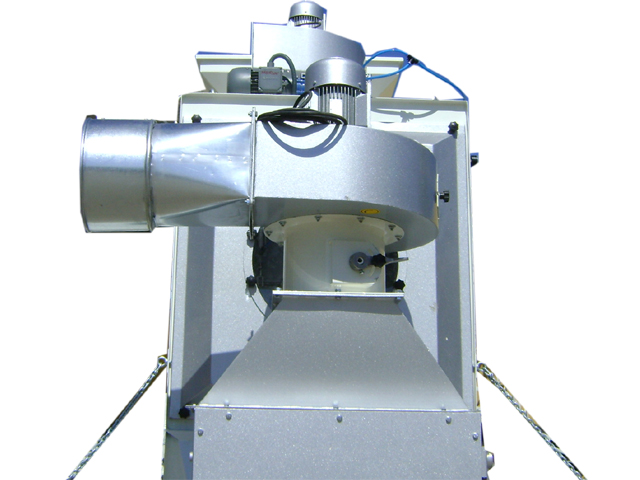

- Aspirator Support: Removes dust, husks, light impurities, and loosened material during polishing.
- Air Recycling System: Supports efficient aspiration operation and cleaner processing conditions.
- Single and Higher-Capacity Versions: SPBT-0100 for compact seed polishing and SPBT-0200 for larger batch processing needs.
- Professional Seed Processing Integration: Can be connected with MMCTECH cleaners, graders, gravity separators, color sorters, seed treaters, conveyors, and bagging systems.
- North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial standards.
Where the SPBT Series Is Used in a Processing Line
The MMCTECH SPBT-0100 and SPBT-0200 Batch Friction Seed Polishers are commonly installed after pre-cleaning, fine cleaning, grading, or gravity separation. They can be used before seed treatment, final inspection, color sorting, weighing, bagging, packaging, or storage depending on crop type and final quality requirement.
Ideal Industries
- Seed Processing Plants
- Sunflower Seed Processing Lines
- Grass Seed Conditioning Facilities
- Flower and Vegetable Seed Processing Operations
- Pulse and Legume Processing Lines
- Specialty Seed Cleaning Facilities
- Seed Enhancement and Scarification Operations
- Commercial Seed Packaging Plants
- Agricultural Cooperatives
- Turnkey Seed Processing Facilities
Why Choose MMCTECH?
MMCTECH manufactures seed polishing machines, seed polishers, seed cleaners, gravity separators, destoners, indented cylinder separators, spiral separators, color sorters, seed treaters, conveyors, bagging systems, silos, dust collection systems, automation panels, and complete seed processing lines for agricultural processing facilities. The SPBT Series is designed for processors who need batch friction polishing, scarification support, aspirator-assisted cleaning, air recycling, reliable batch control, and integration into professional seed processing lines.
The MMCTECH SPBT-0100 and SPBT-0200 Batch Friction Seed Polisher Machines are sales-focused solutions for companies searching for seed polishing machine, batch friction seed polisher, grain polishing machine, wheat polishing machine, wheat polisher, grain polisher, grain polisher machine, beans polishing machine, vegetable seed polishing machine, semi automatic polishing machine, automatic polisher, seed processing equipment, or batch seed polisher for commercial seed enhancement applications.
