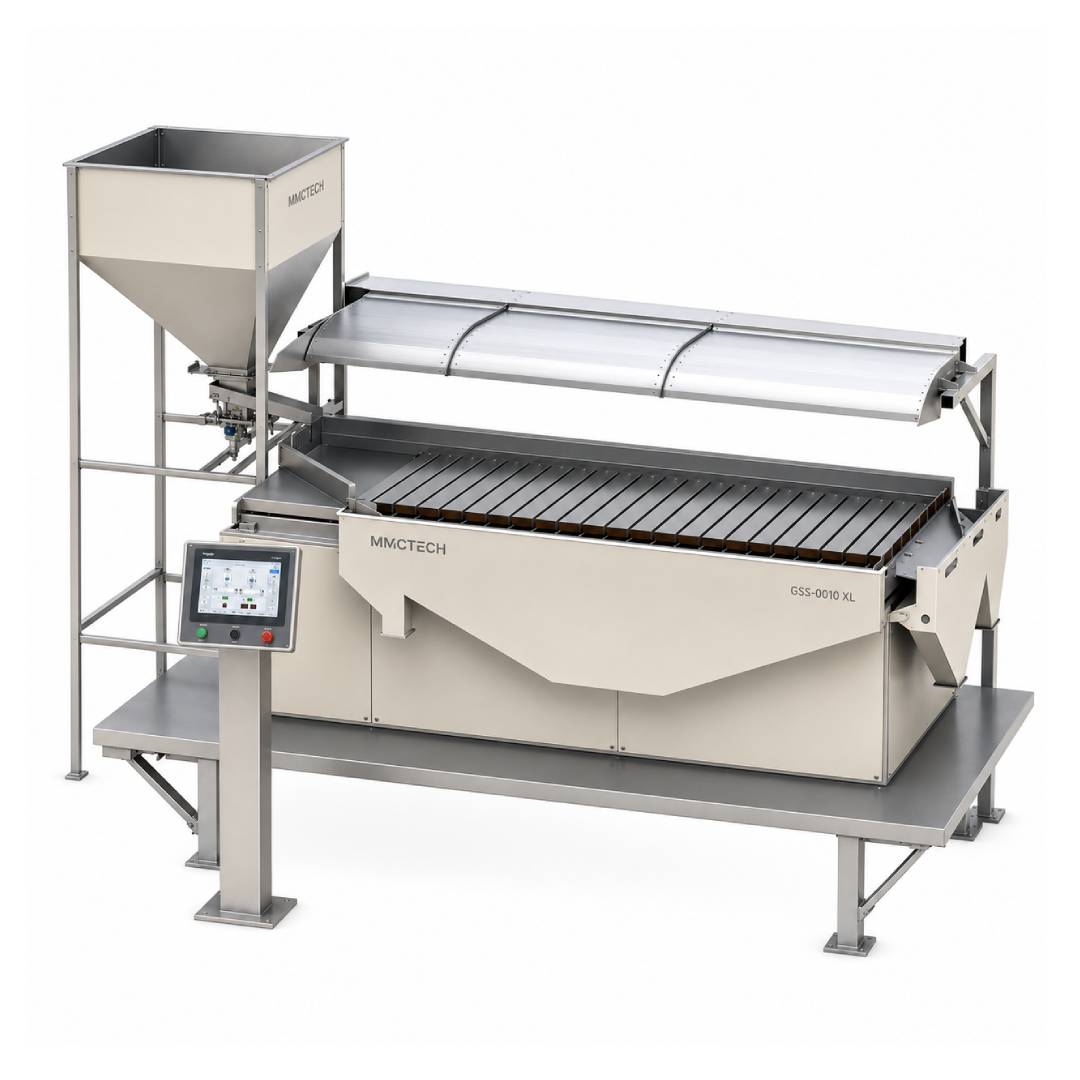

MMCTECH GSS-0010 XL Gravity Separator Machine – Extra Large Series Gravity Table Seed Cleaner
The MMCTECH GSS-0010 XL Gravity Separator Machine is the Extra Large Series model of the MMCTECH gravity table seed cleaner family, designed for commercial seed processing plants, grain cleaning facilities, pulse processing operations, oilseed cleaning lines, coffee processors, agricultural cooperatives, and industrial crop processing facilities that require higher throughput, larger table area, stronger airflow, and advanced automation options. This gravity separator machine separates seeds, grains, pulses, oilseeds, grass seeds, coffee, and specialty agricultural products according to specific weight and density differences.
The GSS-0010 XL Series is built for processors searching for MMCTECH GSS-0010 XL, GSS-0010 XL gravity separator, gravity table seed cleaner, gravity separator machine, gravity table separator, gravity separator for sale, gravity table seed cleaner for sale, seed gravity separator machine, specific gravity separator, grain gravity separator, PLC gravity separator, automatic gravity separator, or gravity separator machine manufacturer for professional seed and grain processing applications.
This Extra Large Series model corresponds to the high-capacity XLAR class in the technical data and is adapted under the MMCTECH GSS naming system for North America and international markets. Compared with smaller gravity table models, the GSS-0010 XL provides higher capacity, larger separation surface, stronger air requirement, and a heavier industrial structure. It is designed for facilities that want to enter commercial markets with stronger performance, more automation options, and model-specific product pages that clearly communicate technical value and sales intent.
The GSS-0010 XL Series is designed to remove light, weak, immature, damaged, hollow, shriveled, low-density, diseased, insect-damaged, and underdeveloped product from heavier and higher-quality material. This makes it especially valuable for seed quality improvement, certified seed preparation, grain grading, pulse cleaning, oilseed separation, coffee grading, and specialty crop processing. When product size is similar but density is different, a gravity table seed cleaner is often the best equipment to improve final purity and commercial value.
The working principle of the MMCTECH GSS-0010 XL Series is based on vibrating gravity table movement and controlled airflow. Product is fed onto the deck through a controlled linear vibratory feeding system. Air passes through the product layer and creates density stratification. Heavy, mature, healthy, and valuable seeds settle closer to the deck surface. Lighter, weaker, immature, damaged, or low-density material rises higher in the product layer. The gravity table movement then carries the separated fractions toward different discharge zones.
The GSS-0010 XL Series is suitable for wheat, corn, soybeans, peas, clover, rape seed, green coffee, sesame seed, sunflower seed, barley, oats, rice, pulses, oilseeds, grass seeds, vegetable seeds, garden seeds, cereal grains, and many other free-flowing agricultural products. Each crop requires different airflow, feeding rate, deck speed, deck tilt, deck slope, deck lock, and discharge divider settings. MMCTECH can evaluate the product and recommend the correct machine configuration according to crop type, bulk density, impurity level, capacity target, automation level, and final product quality requirement.
The listed capacity of the GSS-0010 XL Series is 13,228–17,637 lbs/hour (6–8 t/hour) for corn, wheat, and soybeans, 11,023–16,535 lbs/hour (5–7.5 t/hour) for peas, 5,512–6,614 lbs/hour (2.5–3 t/hour) for clover and rape seed, and 22,046 lbs/hour (10 t/hour) for green coffee. Actual capacity depends on product condition, moisture, impurity level, density difference, airflow setting, deck adjustment, feed rate, and final separation target.
One of the strongest selling advantages of the MMCTECH GSS-0010 XL Series is its flexible automation structure. The machine can be designed as mechanic type, semi auto type, or PLC type depending on the customer’s budget, production volume, operator preference, and automation requirement. This allows MMCTECH to offer different versions of the same gravity separator family for the American market, from practical mechanical operation to fully automated PLC-controlled production.
In the PLC type configuration, the MMCTECH GSS-0010 XL can be designed with touch screen panel control, frequency-controlled linear feeding, frequency-controlled deck speed, frequency-controlled air pressure fan control, motorized deck tilt, motorized deck slope, motorized deck lock, product recipe memory, and clever deck discharge system. The PLC system can store up to 32 different product settings, allowing operators to save and recall recipes for different crops such as wheat, corn, soybeans, peas, sesame, sunflower, green coffee, clover, rape seed, pulses, oilseeds, and specialty seeds.
This 32-product recipe memory system is very important for processors who handle multiple crops throughout the year. Instead of starting every product changeover from zero, the operator can recall saved settings from the PLC screen. Depending on configuration, air pressure, deck speed, feeding rate, deck tilt, deck slope, deck lock position, and discharge-related settings can be controlled and repeated. This reduces setup time, helps standardize product quality, supports operator efficiency, and improves repeatable separation results.
The semi auto type configuration can include digital potentiometer and frequency controller support for linear feeding, deck speed, and selected air pressure fan control. This gives the operator easier and more repeatable adjustment than basic manual operation. The mechanic type configuration can include manual deck adjustments, manual shutters, manual unloading dividers, and digital potentiometer frequency control for selected systems. MMCTECH can match the automation package to the customer’s production style and budget.
The GSS-0010 XL Series is commonly installed after pre-cleaning and screen grading. It can be used before color sorting, seed treatment, final grading, weighing, bagging, packaging, or storage. A color sorter performs better when the product stream is already separated by density and contains fewer weak or low-density fractions. Seed treatment becomes more consistent when the product lot is more uniform. Bagging and packaging quality also improves when the final product contains fewer underdeveloped or low-value fractions.
The GSS-0010 XL Series offers a 49.5 sq ft (4.6 m²) table area, 15,891 CFM (450 m³/min) air requirement, 4 fan units x 7.4 HP (4 x 5.5 kW), 3.0 HP (2.2 kW) eccentric drive motor, and listed net weight of 5,512 lbs (2,500 kg). These specifications position it as a strong large-capacity gravity separator for facilities that need higher production capability and more powerful air support than the Medium and Large models.
MMCTECH manufactures the GSS-0010 XL Series for North America and international markets. The machine can be configured for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial electrical standards. MMCTECH can also support plant layout, conveyor integration, dust collection connection, automation planning, product testing, equipment selection, installation planning, and complete seed processing line engineering according to customer requirements.
Best Ideal Gravity Separation Applications
Wheat, Corn, Soybeans, Peas, Clover, Rape Seed, Green Coffee, Sesame Seed, Sunflower Seed, Barley, Oats, Rice, Pulses, Oilseeds, Grass Seeds, Vegetable Seeds, Garden Seeds, Specialty Seeds, Cereal Grains, Certified Seed Production, Commercial Seed Cleaning, Grain Cleaning, and Density-Based Agricultural Product Separation Applications.
Key Features of the MMCTECH GSS-0010 XL Series
- Extra Large Series Gravity Table: Designed for higher-capacity commercial seed and grain separation applications.
- Specific Weight Separation: Separates products according to density and specific gravity differences.
- Large Table Area: 49.5 sq ft (4.6 m²) table area supports high-capacity separation performance.
- High Air Requirement: 15,891 CFM (450 m³/min) air requirement supports strong density stratification.
- Mechanic, Semi Auto, or PLC Type: Control system can be selected according to project requirement and budget.
- 32 Product Recipe Memory: PLC configuration can store and recall up to 32 product settings for fast crop changeover.
- Adjustable Air Settings: Air pressure fan control can be manual, semi-automatic, or PLC-controlled depending on configuration.
- Adjustable Deck Tilt and Slope: Deck tilt, deck slope, deck lock, deck speed, and feeding settings can be controlled according to automation level.
- Sales-Ready American Market Positioning: Designed as a high-capacity gravity separator for seed companies, grain processors, and industrial plants.
- Ideal Before Color Sorting: Improves product uniformity and reduces weak or low-density fractions before optical sorting.
- Professional Line Integration: Can be connected with MMCTECH cleaners, graders, destoners, color sorters, conveyors, bagging systems, silos, and automation panels.
- North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial standards.
Where the GSS-0010 XL Series Is Used in a Processing Line
The MMCTECH GSS-0010 XL Series is commonly installed after pre-cleaning and screen grading. It can be used before color sorting, seed treatment, final grading, weighing, bagging, packaging, or storage. In complete seed processing plants, it works as a high-value density separation machine for removing light, weak, damaged, immature, and low-density product fractions before final processing.
Ideal Industries
- Seed Processing Plants
- Commercial Grain Cleaning Facilities
- Certified Seed Production Lines
- Wheat, Corn, and Soybean Processing Operations
- Pulse and Legume Processing Facilities
- Oilseed Processing Lines
- Coffee Cleaning and Grading Operations
- Grass and Clover Seed Processing Plants
- Specialty Seed Cleaning Facilities
- Agricultural Cooperatives
- Food Ingredient Processing Facilities
- Turnkey Seed Processing Facilities
Why Choose MMCTECH?
MMCTECH manufactures gravity separator machines, gravity table seed cleaners, seed cleaning machines, grain cleaning equipment, screen seed graders, destoners, indented cylinder separators, spiral separators, color sorters, conveyors, bagging systems, silos, dust collection systems, PLC automation systems, and complete seed processing lines for agricultural processing facilities. The GSS-0010 XL Series is designed for processors who need higher-capacity density separation, strong airflow, flexible automation options, 32-product recipe memory, multi-crop compatibility, and reliable integration into professional seed and grain processing lines.
The MMCTECH GSS-0010 XL Gravity Separator Machine is a strong sales-focused solution for companies searching for MMCTECH GSS-0010 XL, GSS-0010 XL gravity separator, gravity table seed cleaner, gravity separator machine, gravity table separator, gravity separator for sale, gravity separator machine price, seed gravity separator machine, PLC gravity separator, semi automatic gravity table, automatic gravity separator, grain gravity separator, specific gravity separator, gravity separation equipment, or extra-large gravity table for commercial seed processing.
