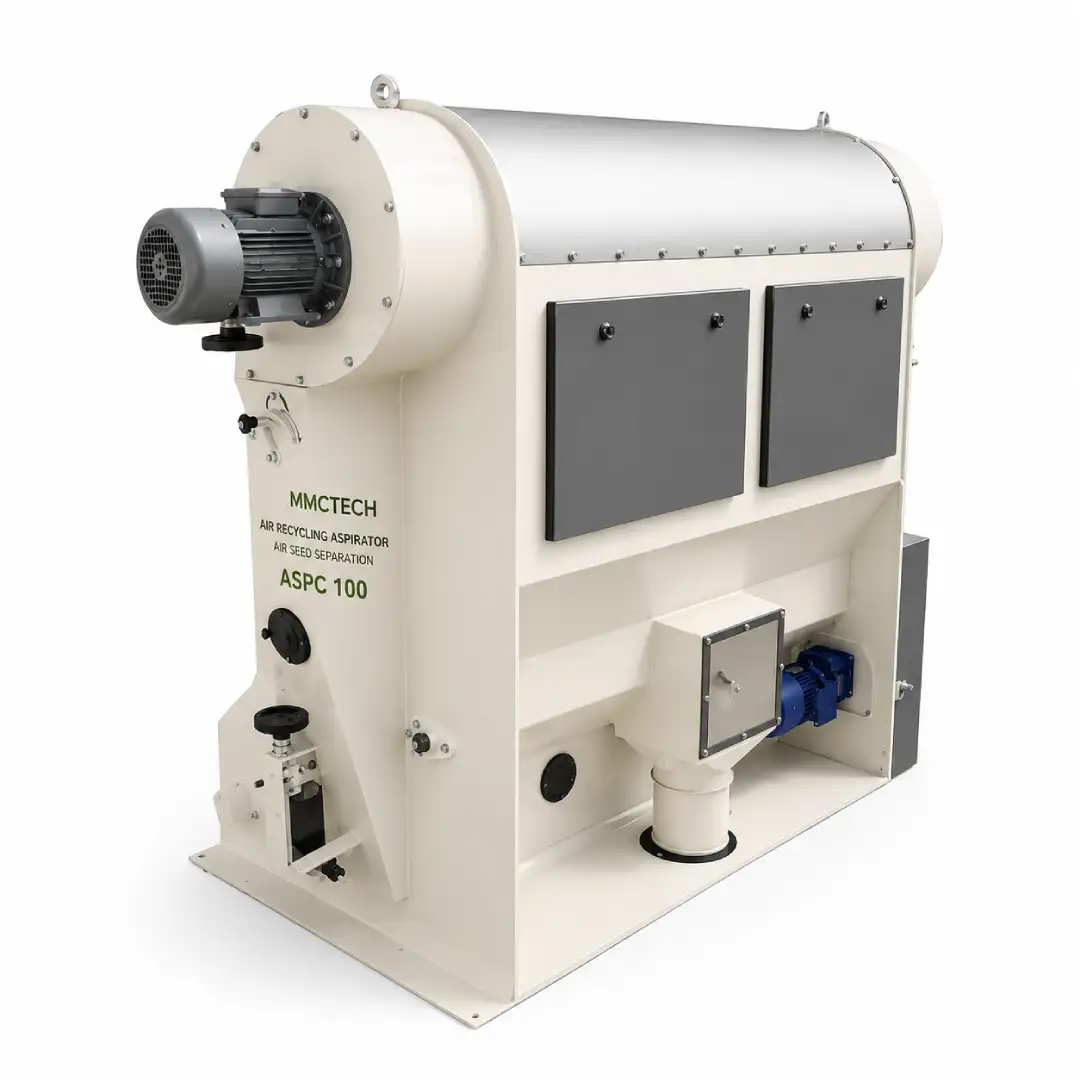

Air Recycling Aspirator – ASPC 100 Series Air Seed Separator Machine
The MMCTECH ASPC 100 Series Air Recycling Aspirator is engineered to remove dust, husks, chaff, empty kernels, lightweight impurities, and low-density foreign materials from grains, seeds, pulses, oilseeds, maize, paddy, and specialty crops using a controlled vertical air aspiration system. Designed for commercial seed processing plants and grain cleaning facilities, the ASPC 100 Series improves product purity while minimizing product loss through accurate airflow adjustment and an efficient air recycling design.
Unlike conventional aspiration channels that continuously exhaust air, the ASPC Series incorporates an internal air recycling system that stabilizes airflow, reduces energy demand, and maintains consistent separation performance. The adjustable aspiration channel allows operators to optimize airflow for different crop densities, making the machine suitable for wheat, barley, oats, corn, rice, millet, lentils, chickpeas, beans, peas, sesame, sunflower, canola, flaxseed, cumin, grass seed, vegetable seed, and numerous specialty agricultural products.
Precision Air Separation Technology
The ASPC 100 Series separates products according to aerodynamic characteristics rather than particle size. Dust, broken husks, straw, empty seeds, immature kernels, and lightweight foreign materials are lifted by controlled airflow while sound product continues through the machine. This significantly improves the performance of downstream equipment including fine screen cleaners, gravity separators, color sorters, seed treaters, polishing machines, and packaging systems.
Efficient Air Recycling Design
The integrated radial fan continuously circulates air inside the aspiration chamber, reducing unnecessary air discharge while maintaining stable separation efficiency. Adjustable aspiration walls, controlled discharge gates, screw conveyor waste removal, and optimized airflow distribution help deliver consistent cleaning performance under varying crop conditions.
Applications

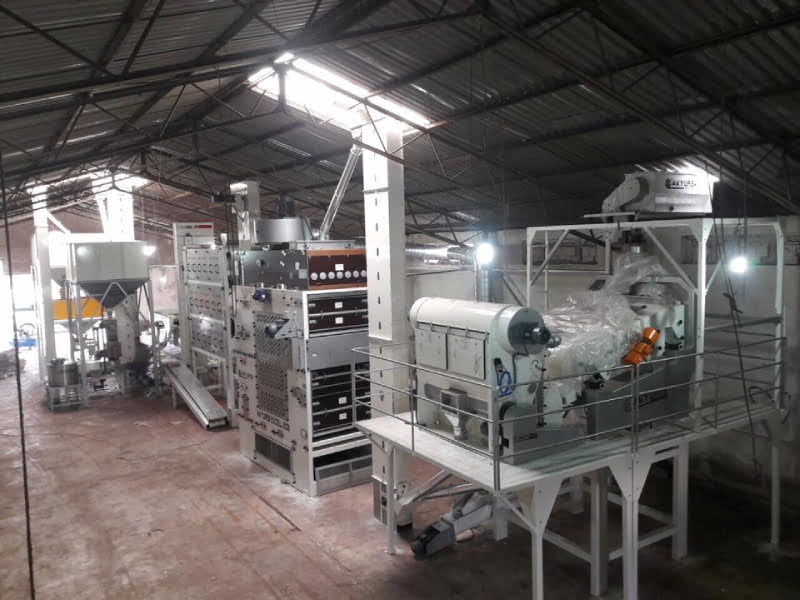

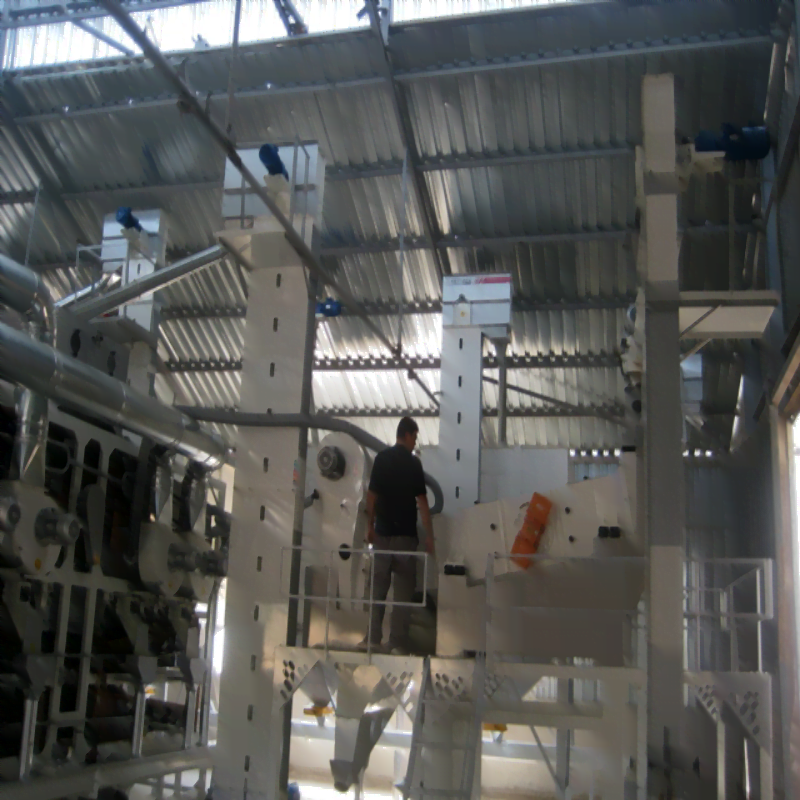

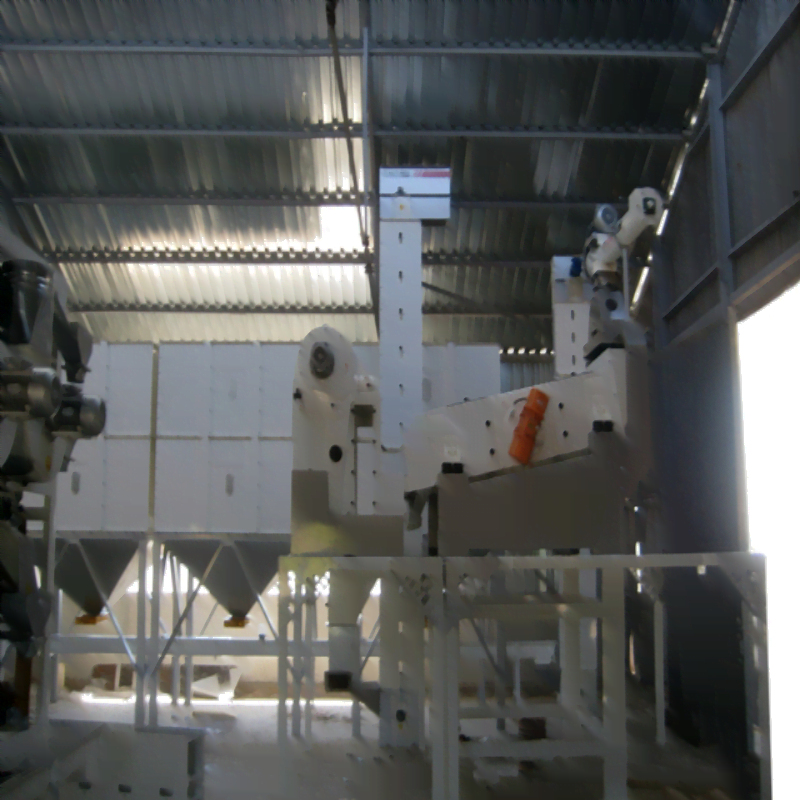

The MMCTECH ASPC 100 Series is widely used in seed conditioning plants, grain cleaning facilities, food processing factories, flour mills, pulse processing plants, oilseed preparation lines, spice seed cleaning operations, and complete turnkey seed processing projects. It can operate independently or as part of a fully automated MMCTECH processing system.
Key Advantages
- High-efficiency vertical air aspiration.
- Energy-saving internal air recycling system.
- Adjustable airflow for different seed densities.
- Low product loss with excellent cleaning accuracy.
- Compact industrial design.
- Suitable for wheat, maize, barley, rice, pulses, oilseeds, spice seeds, and specialty crops.
- Easy integration with complete MMCTECH seed processing lines.
The MMCTECH ASPC 100 Series Air Recycling Aspirator provides an effective solution for processors searching for an industrial air seed cleaner, grain aspirator machine, aspiration channel, pneumatic separator, or high-capacity air separator capable of delivering reliable cleaning performance with modern engineering and low operating costs.
MMCTECH ASPC 100 Series Models & Specifications
The ASPC 100 Series Air Recycling Aspirator is available in three models for different processing capacities and plant layouts.
| Specification |
ASPC-080 |
ASPC-100 |
ASPC-150 |
| Dimension A |
28.3 in (719 mm) |
28.3 in (719 mm) |
28.3 in (719 mm) |
| Dimension B |
5.5 in (140 mm) |
5.5 in (140 mm) |
5.5 in (140 mm) |
| Dimension C |
31.5 in (800 mm) |
39.4 in (1001 mm) |
59.1 in (1501 mm) |
| Dimension D |
44.7 in (1135 mm) |
44.7 in (1135 mm) |
44.7 in (1135 mm) |
| Dimension E |
69.1 in (1755 mm) |
69.1 in (1755 mm) |
69.1 in (1755 mm) |
| Cleaning Capacity |
22,046 lbs/h (10,000 kg/h) |
35,274 lbs/h (16,000 kg/h) |
55,116 lbs/h (25,000 kg/h) |
| Weight |
1,212 lbs (550 kg) |
1,366 lbs (620 kg) |
1,874 lbs (850 kg) |
| Voltage |
208 / 240 / 480 / 600 VAC • 3 Phase • 50–60 Hz |
The ASPC 100 Series is designed for seed processing plants, grain cleaning facilities, maize cleaning systems, pulse processing plants, and food processing operations requiring accurate air aspiration before grading, sorting, or packaging.
Technical datasheets, machine layout drawings, electrical configurations, airflow calculations, installation manuals, foundation drawings, spare parts lists, and project-specific engineering documents for the
MMCTECH ASPC 100 Series Air Recycling Aspirator are available upon request.
Please contact our engineering team with your product type, processing capacity, electrical standard, and project requirements to receive the most suitable technical documentation for your application.
Email: [email protected]
Frequently Asked Questions
What is an Air Recycling Aspirator?
An Air Recycling Aspirator separates lightweight impurities such as dust, husks, chaff, empty seeds, and broken particles from grains and seeds using controlled airflow.
How does the ASPC 100 Series work?
The machine creates an adjustable vertical air stream that lifts light impurities while allowing heavier clean product to discharge separately.
Which products can be cleaned?
Wheat, barley, oats, maize, rice, paddy, lentils, chickpeas, beans, peas, sunflower, sesame, canola, flaxseed, spice seeds, grass seeds, vegetable seeds, and many other agricultural products.
Why is air recycling important?
The internal air recycling system reduces unnecessary air discharge, stabilizes airflow, improves cleaning consistency, and helps lower operating costs.
Can this machine replace a screen cleaner?
No. Screen cleaners separate by size, while aspirators separate by density. They are commonly used together for maximum cleaning efficiency.
Can it be installed in an existing processing plant?
Yes. The ASPC Series can easily integrate with existing grain cleaning, seed processing, gravity separation, color sorting, and bagging systems.
Which model should I choose?
Model selection depends on crop type, required capacity, plant layout, and desired cleaning performance. MMCTECH can recommend the most suitable ASPC model for your project.
Does the machine require different airflow settings for different crops?
Yes. Airflow can be adjusted according to seed density and crop characteristics for optimal separation.
Is the ASPC Series suitable for food processing?
Yes. It is widely used in grain, pulse, oilseed, and dry food processing facilities.
Can the machine remove dust before color sorting?
Yes. Removing dust and lightweight particles before color sorting improves optical sorting accuracy and overall processing efficiency.
Does MMCTECH provide turnkey solutions?
Yes. MMCTECH supplies complete seed processing plants including pre-cleaners, fine cleaners, aspirators, gravity separators, color sorters, conveying systems, automation, and bagging equipment.
