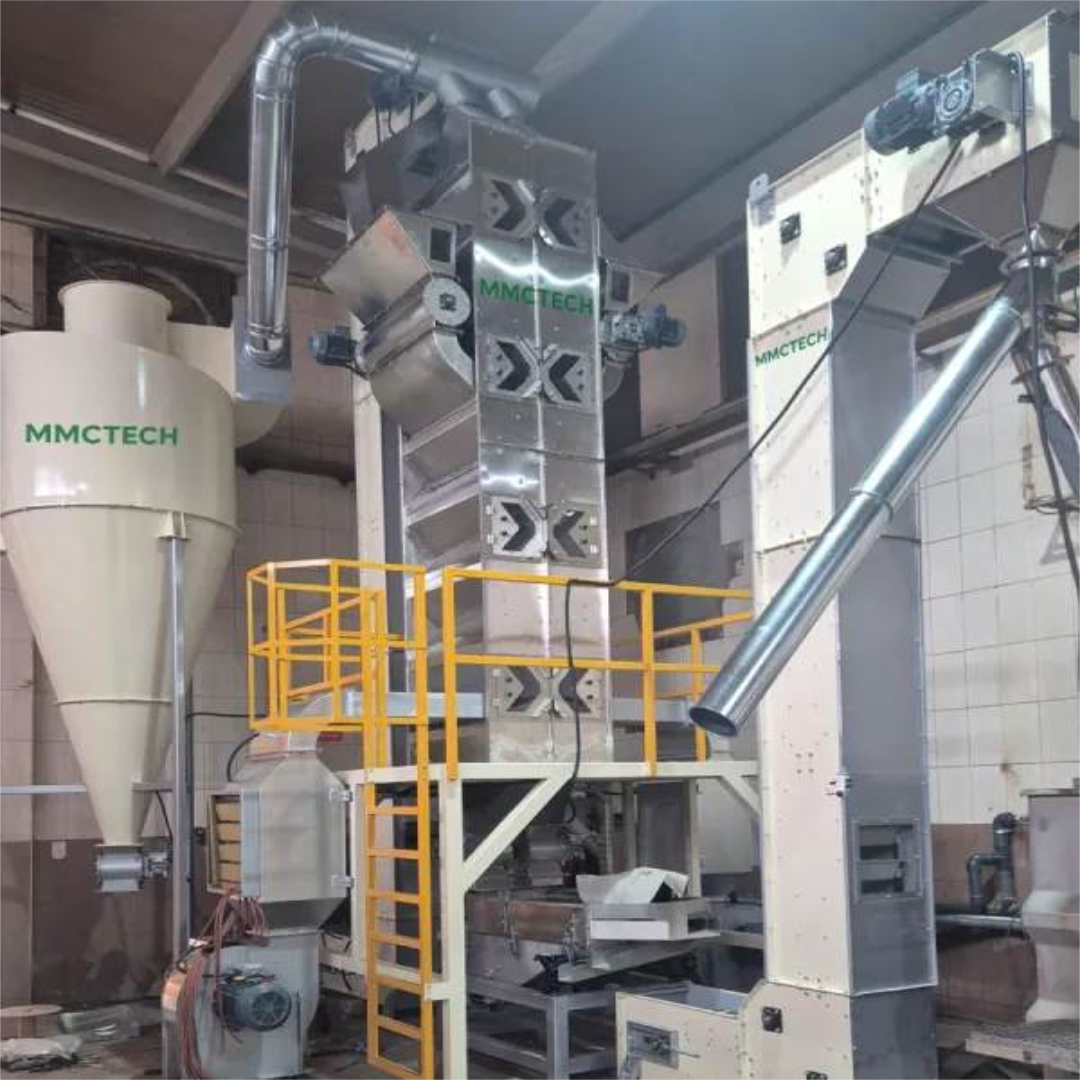

Zig Zag Seed Separator – ZZA-001 Air Seed Cleaner & Air Classifier Machine
The MMCTECH ZZA-001 Zig Zag Seed Separator is an advanced air separation system engineered to remove lightweight impurities, empty seeds, husks, dust, broken particles, and low-density foreign materials from grains, seeds, pulses, oilseeds, and specialty agricultural products. Using a multi-stage zig zag channel combined with precisely controlled airflow, the machine separates products according to density rather than size, delivering exceptional cleaning efficiency before grading, color sorting, gravity separation, packaging, or storage.
Unlike conventional screen cleaners that rely only on sieve openings, the ZZA-001 uses aerodynamic separation to classify materials according to weight and air resistance. As product travels through multiple zig zag chambers, controlled cross-flow air removes light contaminants while heavier, high-quality seeds continue through the discharge outlet. This process significantly improves product purity while reducing product loss and increasing downstream processing efficiency.
Advanced Zig Zag Airflow Separation Technology
The MMCTECH Zig Zag Seed Separator utilizes multiple vertical zig zag chambers that repeatedly expose the product to controlled air currents. Each change in product direction increases the separation efficiency by allowing lightweight particles to remain suspended while heavier seeds fall naturally through the system. This multi-stage separation process provides superior cleaning compared with conventional single-stage aspiration systems.
The adjustable airflow system allows operators to optimize separation for different crop varieties and moisture conditions. Whether processing sesame, sunflower, ryegrass, canola, vegetable seeds, flower seeds, grass seeds, pulses, or specialty grains, airflow can be precisely adjusted to maximize cleaning performance.
Ideal for Small and Lightweight Seeds
The ZZA-001 Series is especially effective for products that are difficult to separate using traditional screen cleaning equipment. Small seeds often contain lightweight husks, empty kernels, broken material, dust, immature seeds, and field debris that require density-based separation rather than size grading. The zig zag airflow system efficiently removes these unwanted materials without excessive mechanical contact, helping preserve seed quality and germination potential.
Applications Across Multiple Industries
The MMCTECH Zig Zag Seed Separator is widely used in commercial seed processing plants, grain cleaning facilities, vegetable seed production, grass seed processing, oilseed preparation plants, spice seed processing lines, pulse processing facilities, and food processing industries. The machine also serves as an excellent pre-cleaning or secondary cleaning stage before gravity separators, color sorters, optical sorting equipment, polishing systems, or packaging lines.
In sesame processing plants, the ZZA-001 efficiently separates light husks after dehulling operations. In sunflower processing facilities, it removes empty hulls and lightweight shell fragments before grading. Grass seed producers benefit from improved removal of empty florets, dust, and broken plant material, while vegetable seed processors achieve higher purity before packaging and commercial distribution.
Industrial Construction for Continuous Operation
The ZZA-001 is manufactured for demanding industrial environments using heavy-duty construction, precision airflow controls, durable feeding systems, and balanced air distribution throughout the separation chamber. The modular design allows integration into new processing plants or modernization of existing facilities with minimal installation requirements.
Integration with Complete MMCTECH Processing Lines
The Zig Zag Seed Separator can operate as a stand-alone air classifier or as part of a complete MMCTECH seed processing system including bucket elevators, conveyors, pre-cleaners, fine screen cleaners, gravity separators, magnetic separators, color sorters, seed treaters, weighing equipment, bagging machines, PLC automation, and SCADA control systems.
Main Advantages
- Multi-stage zig zag airflow separation technology.
- Excellent removal of husks, dust, empty seeds, and lightweight impurities.
- High cleaning efficiency for sesame, sunflower, ryegrass, grass seeds, vegetable seeds, and specialty crops.
- Adjustable airflow for different products.
- Low product damage and gentle seed handling.
- Continuous industrial operation.
- Easy integration into existing processing plants.
- Compatible with complete MMCTECH turnkey seed processing solutions.
The MMCTECH ZZA-001 Zig Zag Seed Separator provides a reliable solution for processors searching for a zig zag seed cleaner, zig zag seed separator, zig zag air separator, seed separator machine, air classifier, or air seed cleaner. Designed for North America and international markets, the system delivers efficient density-based separation, improved product purity, and dependable performance across a wide range of agricultural processing applications.
MMCTECH ZZA-001 Zig Zag Seed Separator Models & Specifications
The
MMCTECH ZZA-001 Zig Zag Seed Separator is a high-efficiency air classification system designed for density-based separation of lightweight impurities from seeds, grains, pulses, oilseeds, and specialty agricultural products. The machine uses multiple zig zag airflow chambers to separate husks, dust, empty seeds, broken material, and low-density contaminants while maintaining gentle product handling.
| Machine Name |
Zig Zag Air Seed Cleaner |
| Machine Code |
ZZA-001 Series |
| Machine Type |
Multi-Stage Air Separation System |
| Working Principle |
Zig Zag Channel with Adjustable Cross-Flow Air Classification |
| Suitable Products |
Sesame, sunflower, ryegrass, canola, grass seed, vegetable seeds, flower seeds, pulses, oilseeds, cereals, spices, and specialty seeds |
| Separation Type |
Dust, husks, empty seeds, lightweight particles, broken material, and low-density foreign material |
| Capacity |
Depends on product type and required cleaning quality |
| Motor Power |
Project-specific configuration |
| Weight |
Depends on machine configuration |
| Electrical Standard |
208 / 240 / 480 / 600 VAC • 3 Phase • 50–60 Hz |
| Installation |
Standalone machine or complete processing line integration |
| Automation |
Compatible with PLC control, SCADA monitoring, and fully automated MMCTECH processing systems |
The
MMCTECH ZZA-001 Zig Zag Seed Separator is ideal for processors requiring accurate air classification before gravity separation, color sorting, packaging, or storage. Each machine can be customized according to product characteristics, required capacity, plant layout, airflow demand, and automation level to maximize cleaning efficiency.
Technical brochures, machine layout drawings, airflow diagrams, electrical requirements, installation manuals, spare parts documentation, foundation drawings, and project-specific engineering documents for the
MMCTECH ZZA-001 Zig Zag Seed Separator are available upon request.
MMCTECH provides complete engineering support for zig zag seed cleaners, air seed separators, air classifiers, cyclone separation systems, seed conditioning equipment, and turnkey processing plants. Documentation can be prepared according to your product type, processing capacity, electrical standard, and facility layout.
Please contact our engineering department to request technical documentation for your project.
Email: [email protected]
Frequently Asked Questions
What is a Zig Zag Seed Separator?
A Zig Zag Seed Separator is an air classification machine that removes lightweight impurities such as husks, dust, empty seeds, and broken particles using multiple airflow chambers instead of screen openings.
How does the ZZA-001 work?
The machine passes product through several zig zag channels while adjustable cross-flow air separates light material from heavier seeds according to density.
Which products can be processed?
The ZZA-001 is suitable for sesame, sunflower, ryegrass, canola, grass seed, vegetable seed, flower seed, pulses, oilseeds, cereals, spices, and many specialty agricultural products.
Why use a Zig Zag separator instead of a screen cleaner?
Screen cleaners separate by particle size, while the Zig Zag Separator separates by density. Many lightweight impurities cannot be removed efficiently with screens alone.
Can the machine remove empty seeds?
Yes. Empty seeds, immature kernels, lightweight material, husks, and dust are efficiently separated using adjustable airflow.
Is the machine suitable for sesame processing?
Yes. It is widely used after sesame dehulling to remove light husks and improve product purity before polishing or packaging.
Can the ZZA-001 process sunflower seeds?
Yes. The machine effectively removes empty hulls, lightweight shells, and dust from sunflower processing lines.
Is airflow adjustable?
Yes. Operators can adjust airflow according to product density, moisture, impurity level, and desired cleaning quality.
Can it be installed before a gravity separator?
Yes. Removing lightweight impurities before gravity separation improves overall separation efficiency and increases final product quality.
Can the machine be integrated into existing plants?
Yes. The ZZA-001 can easily integrate with conveyors, elevators, screen cleaners, gravity tables, color sorters, bagging machines, and complete MMCTECH processing systems.
Does the Zig Zag Separator damage seeds?
No. The machine uses gentle airflow instead of aggressive mechanical contact, helping preserve seed quality and germination potential.
Is the machine suitable for commercial seed conditioning?
Yes. The ZZA-001 is designed for commercial seed conditioning plants requiring high cleaning efficiency and continuous industrial operation.
Can MMCTECH customize the machine?
Yes. Machine configuration, airflow capacity, dimensions, automation level, and integration options can all be customized according to customer requirements.
Does MMCTECH supply complete processing plants?
Yes. MMCTECH manufactures complete seed processing systems including pre-cleaners, fine cleaners, air separators, gravity separators, color sorters, conveyors, bagging systems, and industrial automation solutions.
How do I choose the correct Zig Zag Seed Separator?
Selection depends on product type, capacity, moisture, impurity level, plant layout, and required product purity. MMCTECH engineers can recommend the most suitable configuration for your project.
