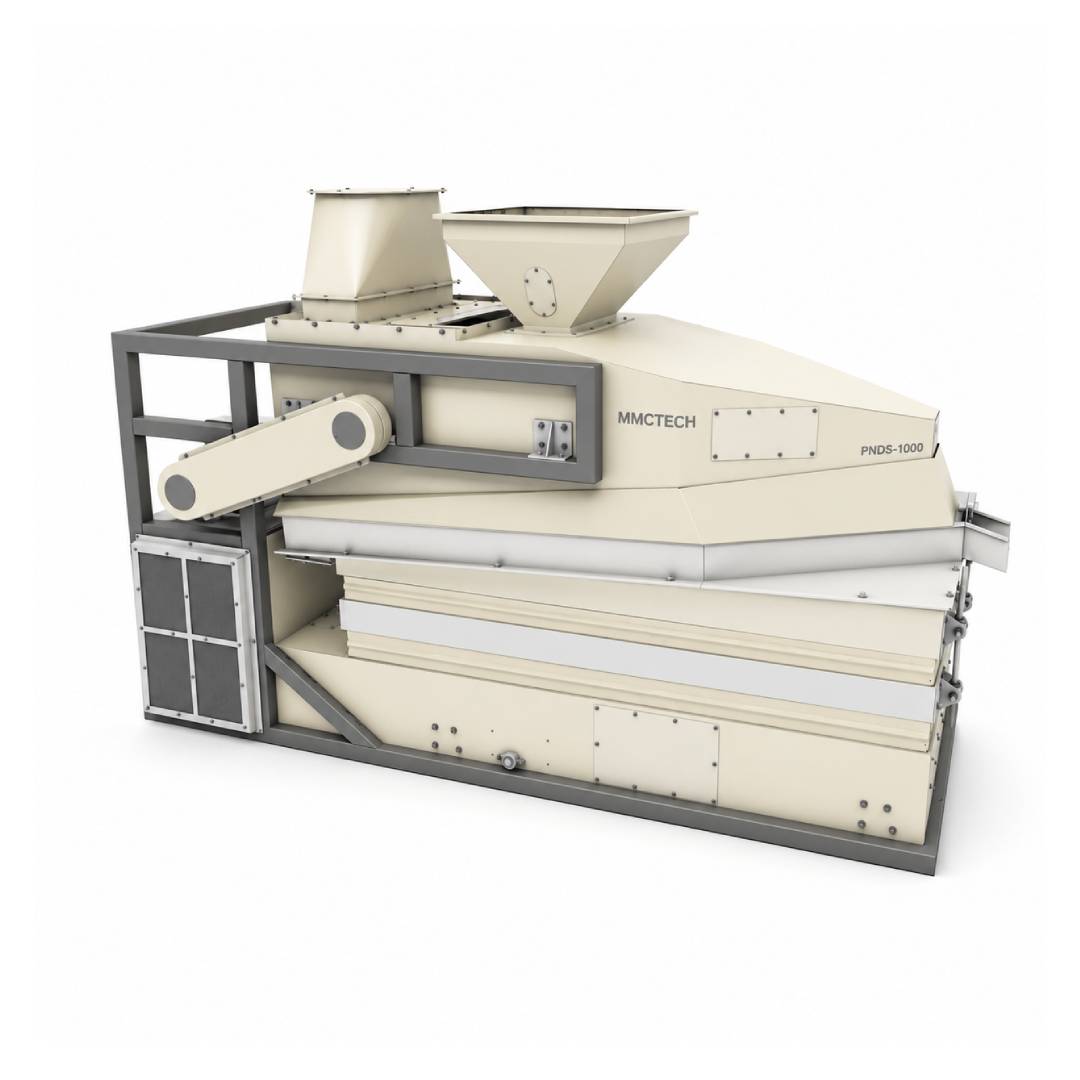

MMCTECH Peanut Separator Machine – PNDS-1000 Series
The MMCTECH Peanut Separator Machine – PNDS-1000 Series is a high-capacity peanut cleaning, separation, and quality improvement machine designed for raw peanuts, shelled peanuts, groundnuts, peanut processing plants, food-grade cleaning lines, commercial groundnut cleaning facilities, and industrial nut processing applications. Developed under MMCTECH Seed Processing Machines & Equipment with Automation Solutions, the PNDS-1000 is engineered to remove unwanted materials, improve peanut lot quality, separate low-quality fractions, and prepare peanuts for downstream processing, packaging, oil production, roasting, peanut butter production, or export preparation.
Peanut and groundnut processing requires reliable cleaning and separation because raw product can contain stones, soil particles, dust, broken kernels, empty or low-density peanuts, loose shells, foreign materials, and inconsistent product fractions. These impurities can reduce final quality, damage downstream equipment, increase labor cost, and lower the commercial value of the product. The MMCTECH PNDS-1000 is designed to support this process by combining high air volume, wide screen area, industrial fan configuration, and controlled product flow in one professional peanut separator machine.
The PNDS-1000 is a strong solution for customers searching for a peanut separator machine, groundnut cleaning machine, peanut cleaning machine, peanut sorting machine, groundnut separator, raw peanut cleaner, shelled peanut separator, peanut processing equipment, peanut cleaning equipment, food-grade peanut processing machine, or industrial nut cleaning and separation system for commercial production. It can be used as a standalone peanut separator or integrated into complete MMCTECH processing lines with conveyors, elevators, destoners, gravity separators, color sorters, dehulling systems, bagging machines, silos, dust collection equipment, and automation control panels.
The working principle of the MMCTECH PNDS-1000 is based on screening + air separation + controlled product classification. Product enters the machine and is distributed across the cleaning and separation sections. The pre-cleaning tray screen helps remove larger unwanted material and prepare the product for further separation. The classification tray screen supports product grading and separation by size or fraction. The main screen area and aspirator airflow support the removal of light impurities, dust, loose shell material, low-density particles, and other unwanted fractions according to product condition and processing target.
The industrial fan configuration includes an upper fixed-speed fan, a lower variable-frequency-drive fan, and an eccentric fan with variable-frequency-drive control. This allows the machine to support strong air-based separation and better process adjustment for different peanut conditions. Raw peanuts, shelled peanuts, and groundnuts can vary in density, size, moisture, shell content, impurity level, and cleaning target. Adjustable airflow and screen lift settings help operators tune the PNDS-1000 according to the product and final quality requirement.
The MMCTECH PNDS-1000 is suitable for cleaning and separating raw peanuts, shelled peanuts, groundnuts, peanuts for food-grade processing, peanuts for oil processing, peanuts for roasting preparation, peanuts for peanut butter production, peanuts for packaging, and groundnut lots prepared for export or commercial distribution. The machine can help remove stones, heavy impurities, dust, shell fragments, low-quality kernels, broken pieces, dirt, foreign material, and inconsistent product fractions depending on the process setup and product condition.
For food-grade peanut processing, clean and uniform product is essential. Peanut processors often need to reduce foreign materials before roasting, blanching, sorting, grading, packaging, or oil extraction. A strong peanut cleaning system helps improve product appearance, protect downstream equipment, reduce re-cleaning work, improve process consistency, and support higher-value finished product. The PNDS-1000 is designed for these professional processing needs.
The PNDS-1000 offers a listed capacity of 22,000 lbs/hour (11 short tons/hour), depending on peanut condition, impurity level, moisture, screen selection, airflow setting, feed rate, and final quality target. With a total screen area of 80.5 sq ft (7.48 m²), a main screen area of 30.1 sq ft (2.80 m²), a pre-cleaning tray screen of 25.2 sq ft (2.34 m²), a classification tray screen of 25.2 sq ft (2.34 m²), and aspirator air volume of 14,691 CFM (24,965 m³/hour), the machine is built for high-volume commercial peanut separation.
The machine has a heavy-duty industrial structure with a listed machine weight of 7,716 lbs (3,500 kg), length of 221 in (5,613 mm), width of 87 in (2,210 mm), and height of 162 in (4,115 mm). The screen lift adjustment is manual, and the listed operating noise level is 85 dB. The PNDS-1000 can be configured for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial electrical standards for North America and international markets.
In complete MMCTECH peanut processing layouts, the PNDS-1000 can be positioned after intake and pre-cleaning or before color sorting, final grading, roasting, dehulling, blanching, packaging, oil extraction, peanut butter production, or storage. MMCTECH can support layout planning, product flow design, conveyor integration, dust control, electrical planning, automation support, and complete peanut processing line development according to capacity requirement, raw product condition, and final quality target.
Best Ideal Peanut and Groundnut Processing Applications
Raw Peanuts, Shelled Peanuts, Groundnuts, Food-Grade Peanuts, Roasting Preparation, Peanut Butter Processing, Peanut Oil Processing, Commercial Peanut Cleaning, Export Peanut Preparation, Peanut Packaging Lines, Nut Cleaning Facilities, Groundnut Sorting Lines, and Complete Peanut Processing Plants.
Key Features of the MMCTECH PNDS-1000 Peanut Separator Machine
- High-Capacity Peanut Separation: Listed capacity up to 22,000 lbs/hour (11 short tons/hour), depending on product and configuration.
- Peanut Cleaning and Quality Improvement: Helps remove foreign material, dust, shell fragments, low-quality kernels, and unwanted fractions.
- Wide Screen Area: Includes 80.5 sq ft (7.48 m²) total screen area for industrial peanut processing.
- Pre-Cleaning Tray Screen: Supports initial impurity removal before classification.
- Classification Tray Screen: Helps separate product fractions and improve final consistency.
- High Air Volume: Aspirator air volume of 14,691 CFM (24,965 m³/hour) supports strong air-based separation.
- Industrial Fan Configuration: Includes upper fan, lower VFD fan, and eccentric VFD fan for adjustable process performance.
- Manual Screen Lift Adjustment: Allows operator adjustment according to product and processing requirement.
- Commercial Peanut Processing Design: Suitable for raw peanuts, shelled peanuts, groundnuts, and food-grade cleaning applications.
- North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial standards.
Where the PNDS-1000 Is Used in a Processing Line
The MMCTECH PNDS-1000 can be installed after intake cleaning and before downstream processing steps such as color sorting, final grading, roasting, dehulling, blanching, packaging, oil extraction, peanut butter production, or storage. In complete MMCTECH processing plants, it works as a main peanut cleaning and separation machine for improving product quality and preparing peanuts for higher-value processing.
Ideal Industries
- Peanut Processing Plants
- Groundnut Cleaning Facilities
- Food-Grade Nut Processing Lines
- Peanut Butter Production Facilities
- Peanut Oil Processing Plants
- Roasting and Packaging Operations
- Export Peanut Preparation Lines
- Commercial Agricultural Processing Facilities
- Nut Cleaning and Sorting Plants
- Turnkey Peanut Processing Facilities
Why Choose MMCTECH?
MMCTECH manufactures peanut separator machines, seed processing machines, grain cleaning equipment, destoners, gravity separators, color sorters, conveyors, bagging systems, silos, dust collection systems, automation panels, and complete processing lines for agricultural and food-grade product handling. The PNDS-1000 Series is designed for processors who need reliable peanut cleaning, high air volume, strong screen area, industrial fan configuration, and smooth integration into modern processing plants.
The MMCTECH Peanut Separator Machine – PNDS-1000 Series is a strong solution for companies searching for a peanut separator machine, groundnut cleaning machine, peanut cleaning machine, peanut sorting machine, raw peanut cleaner, shelled peanut separator, groundnut separator, food-grade peanut processing machine, peanut processing equipment, peanut cleaning equipment, peanut grading machine, or commercial groundnut cleaning solution for professional production.
MMCTECH Seed Processing Machines & Equipment with Automation Solutions
The MMCTECH Peanut Separator Machine PNDS-1000 Series is designed for efficient cleaning, separation, and quality improvement of raw peanuts, shelled peanuts, and groundnuts. With high air volume, wide screen area, industrial fan configuration, and commercial processing performance, this model provides a professional solution for food-grade peanut processing and commercial groundnut cleaning applications.
Standard Table – North America and International Electrical Standards
| Machine Name |
Peanut Separator Machine |
| Model |
PNDS-1000 |
| SKU |
PNDS-1000 Series |
| Machine Type |
Peanut Cleaning, Separation and Quality Improvement Machine |
| Working Principle |
Screening + Air Separation + Controlled Product Classification |
| Capacity |
22,000 lbs/hour (11 short tons/hour) |
| Machine Weight |
7,716 lbs (3,500 kg) |
| Machine Length |
221 in (5,613 mm) |
| Machine Width |
87 in (2,210 mm) |
| Machine Height |
162 in (4,115 mm) |
| Screen Lift Adjustment |
Manual |
| Noise Level |
85 dB |
| Upper Fan Fixed Speed |
15 HP (11.2 kW) |
| Lower Fan Variable Frequency Drive |
15 HP (11.2 kW) |
| Eccentric Fan Variable Frequency Drive |
2 HP (1.5 kW) |
| Main Screen Area |
30.1 sq ft (2.80 m²) |
| Pre-Cleaning Tray Screen |
25.2 sq ft (2.34 m²) |
| Classification Tray Screen |
25.2 sq ft (2.34 m²) |
| Total Screen Area |
80.5 sq ft (7.48 m²) |
| Aspirator |
14,691 CFM (24,965 m³/hour) |
| Suitable Products |
Raw peanuts, shelled peanuts, groundnuts, peanut lots for roasting, peanut butter production, oil processing, packaging, food-grade processing, and commercial groundnut cleaning |
| Recommended Line Position |
After intake cleaning; before color sorting, final grading, roasting, dehulling, blanching, packaging, oil extraction, peanut butter production, or storage depending on processing requirement |
| Integration Options |
Conveyors, elevators, destoners, gravity separators, color sorters, dehulling systems, bagging machines, dust collection equipment, silos, and automation-supported processing lines |
| Electrical Standards |
208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz |
The MMCTECH PNDS-1000 Peanut Separator Machine can be supplied as a standalone peanut cleaning and separation machine or integrated into a complete peanut processing, cleaning, sorting, conveying, packaging, oil processing, roasting preparation, and automation-supported production line. Capacity values may vary according to peanut type, moisture, impurity level, shell content, product condition, airflow setting, screen configuration, feed rate, and project layout.
Technical Documents & Project Support
Technical specifications, screen configuration details, air volume requirements, fan system details, peanut processing layout, inlet and outlet planning, electrical standards, installation requirements, spare parts information, and project-specific engineering support for the MMCTECH PNDS-1000 Peanut Separator Machine are available upon request.
MMCTECH can help evaluate your peanut type, raw product condition, shell content, impurity level, required capacity, facility layout, automation needs, airflow requirement, screen configuration, and final product quality target to recommend the most suitable peanut separator machine or complete peanut processing line.
Contact MMCTECH: Request technical information or project support
Frequently Asked Questions
What is the best machine for cleaning peanuts and groundnuts?
The best machine depends on peanut type, impurity level, shell content, required capacity, airflow requirement, screen configuration, and final product quality target. The MMCTECH PNDS-1000 Peanut Separator Machine is designed for high-capacity raw peanut, shelled peanut, and groundnut cleaning and separation applications.
What is a peanut separator machine?
A peanut separator machine is used to clean, separate, and improve the quality of peanut lots by removing unwanted material, low-quality fractions, dust, shell fragments, stones, dirt, and inconsistent product portions depending on machine configuration and process layout.
Can the PNDS-1000 clean raw peanuts?
Yes. The PNDS-1000 can clean raw peanuts by removing impurities, shell fragments, dust, low-density material, and unwanted fractions according to screen selection, airflow setting, and product condition.
Can the PNDS-1000 clean shelled peanuts?
Yes. The PNDS-1000 can process shelled peanuts when the machine is configured according to peanut size, moisture, impurity level, airflow requirement, and final quality target.
Can the PNDS-1000 be used for groundnuts?
Yes. The PNDS-1000 is suitable for groundnut cleaning, groundnut separation, commercial peanut preparation, and food-grade peanut processing applications.
Can peanuts be separated by machine?
Yes. Peanuts can be separated by machine according to size, density, airflow response, quality fraction, shell content, and impurity type. The PNDS-1000 uses screening and air separation to support peanut cleaning and classification.
How does a peanut separator machine work?
Product enters the machine and moves through screen and air separation sections. Screens help separate product fractions and unwanted material by size, while airflow helps remove lighter impurities, shell fragments, low-density material, and inconsistent fractions.
Does the PNDS-1000 remove peanut skins?
The PNDS-1000 is not primarily a peanut skin removal or blanching machine. Peanut skin removal is usually performed by roasting, blanching, or peeling equipment. The PNDS-1000 is used for peanut cleaning, separation, and quality improvement before or after related processing stages depending on the line layout.
Can the PNDS-1000 remove stones and heavy impurities?
The PNDS-1000 supports cleaning and separation of unwanted material in peanut lots. For dedicated stone removal, MMCTECH can also integrate destoner equipment before or after the peanut separator depending on the impurity level and processing goal.
Can the PNDS-1000 remove low-quality peanuts?
Yes. Depending on airflow settings, screen configuration, and product condition, the PNDS-1000 can help separate low-density, broken, empty, shriveled, or inconsistent peanut fractions from higher-quality product.
Is the PNDS-1000 suitable for peanut butter production lines?
Yes. The PNDS-1000 can be used before peanut butter production to improve raw material quality by removing impurities and inconsistent fractions before roasting, grinding, or further preparation.
Is the PNDS-1000 suitable for peanut oil processing?
Yes. The machine can be used in peanut oil processing lines to clean raw material before downstream pressing, extraction, roasting, or preparation equipment.
Can the PNDS-1000 be used before a color sorter?
Yes. Cleaning and separating peanuts before color sorting helps reduce dust, shell fragments, low-density material, and unwanted fractions, allowing the color sorter to work with a more stable product stream.
Can the PNDS-1000 be used before roasting?
Yes. Peanut cleaning before roasting helps improve final product quality and reduces the chance of foreign material entering the roasting process.
Can the PNDS-1000 be integrated into a complete peanut processing line?
Yes. The PNDS-1000 can be integrated with conveyors, elevators, destoners, gravity separators, color sorters, dehulling systems, blanching equipment, roasting preparation lines, bagging machines, silos, dust collection equipment, and automation control systems.
What is the capacity of the PNDS-1000?
The listed capacity of the PNDS-1000 is 22,000 lbs/hour (11 short tons/hour). Actual capacity depends on peanut type, moisture, impurity level, shell content, airflow setting, screen configuration, feed rate, and processing target.
What is the total screen area of the PNDS-1000?
The PNDS-1000 has a total screen area of 80.5 sq ft (7.48 m²), including main screen area, pre-cleaning tray screen, and classification tray screen sections.
What is the aspirator air volume of the PNDS-1000?
The aspirator air volume is 14,691 CFM (24,965 m³/hour), supporting strong air-based separation for commercial peanut processing applications.
What fan configuration does the PNDS-1000 use?
The PNDS-1000 includes an upper fixed-speed fan, a lower variable-frequency-drive fan, and an eccentric fan with variable-frequency-drive control for adjustable separation performance.
What electrical standards are available for the PNDS-1000?
The PNDS-1000 can be configured for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz electrical standards for U.S., Canadian, and international industrial facilities.
How is peanut separator machine price determined?
Peanut separator machine price depends on capacity requirement, screen configuration, fan system, aspirator requirement, electrical standard, automation level, conveyors, dust collection connection, installation layout, and whether the machine is supplied as a standalone unit or part of a complete peanut processing line.
Where can I buy a peanut separator machine?
You can contact MMCTECH to discuss the PNDS-1000 Peanut Separator Machine for raw peanuts, shelled peanuts, groundnuts, peanut cleaning, peanut sorting, food-grade processing, and complete peanut processing line integration.
Does MMCTECH manufacture peanut separator machines?
Yes. MMCTECH manufactures peanut separator machines, seed processing equipment, grain cleaning equipment, destoners, gravity separators, color sorters, conveyors, bagging systems, silos, dust collection equipment, automation systems, and complete processing lines for North America and international markets.
