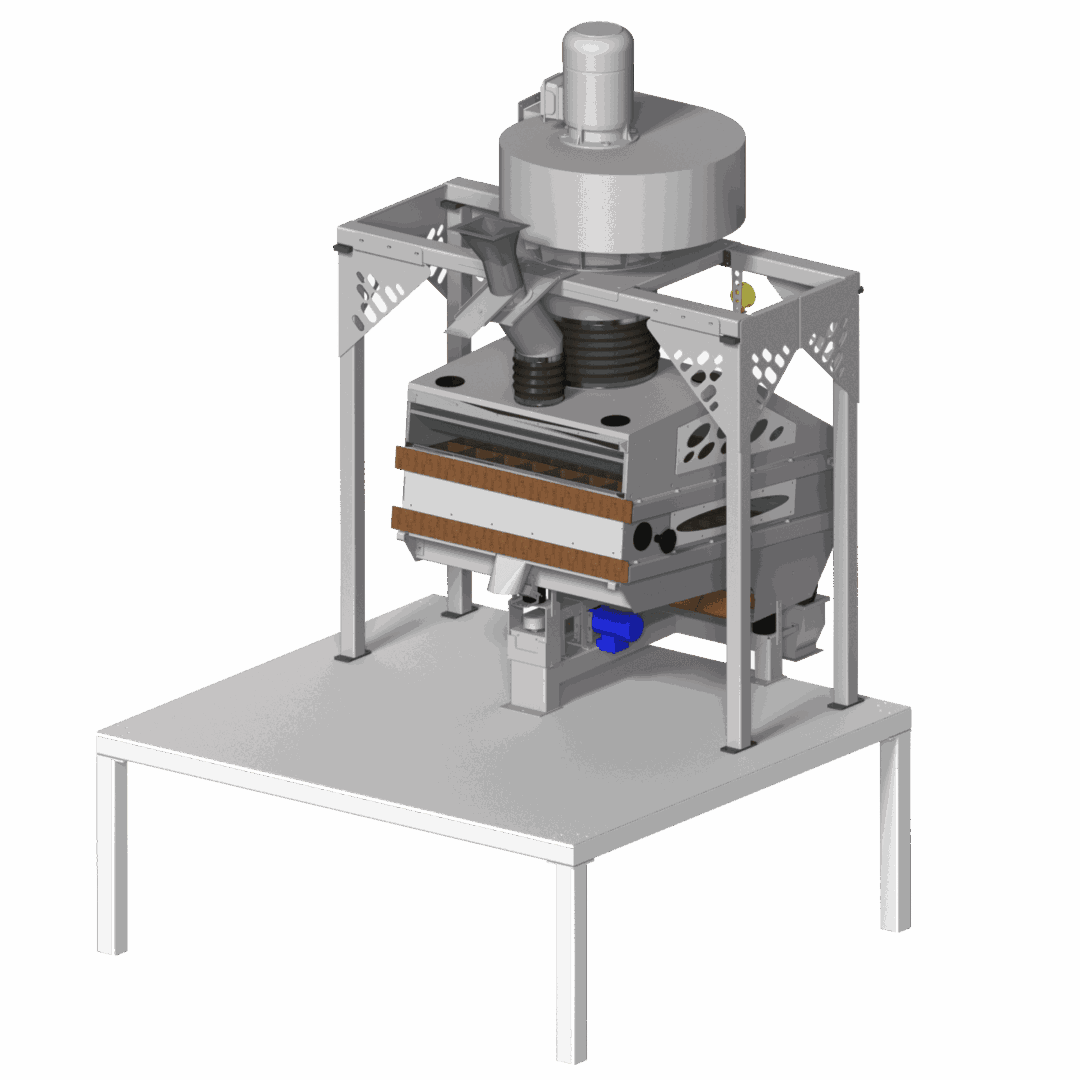

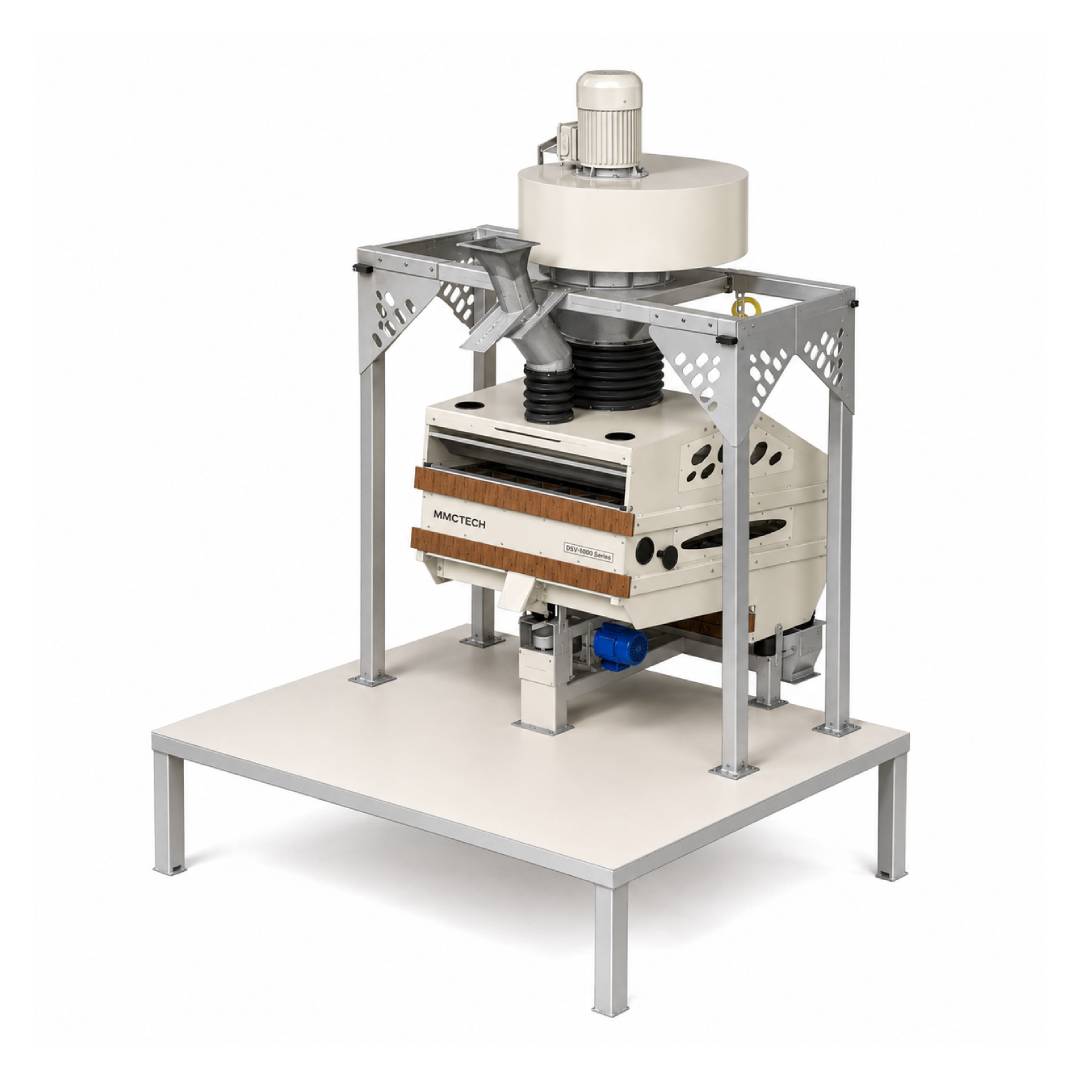

MMCTECH Vibration Type Destoner Machine – DSV-1000 Series
The MMCTECH Vibration Type Destoner Machine – DSV-1000 Series is a high-efficiency seed stone separator designed to remove stones, glass, metal fragments, sand, soil clods, heavy particles, and dense impurities from grains, seeds, pulses, oilseeds, and specialty agricultural products. Built for modern seed cleaning plants, grain processing facilities, sesame cleaning lines, sunflower seed processing plants, pulse cleaning operations, food-grade processing facilities, and turnkey seed processing systems, the DSV-1000 Series provides reliable stone removal performance with vibration-based separation, controlled airflow, adjustable deck settings, and multi-screen destoning technology.
Stone removal is one of the most important stages in grain and seed processing. Stones, glass, metal pieces, and other dense impurities can damage downstream equipment, reduce product quality, increase maintenance cost, create food safety concerns, and lower final product value. The MMCTECH DSV-1000 Series is engineered to remove these heavy contaminants before product moves to color sorting, gravity separation, dehulling, milling, polishing, roasting, treating, bagging, or packaging.
The working principle of the DSV-1000 Series is based on vibration + controlled airflow + density separation. Product is distributed onto the vibrating deck and screen area. Airflow helps stratify the product layer by density, allowing lighter clean product to move separately from heavier contaminants. Stones and dense impurities remain closer to the deck and are guided toward the reject outlet, while clean grains and seeds move toward the clean product outlet. Adjustable deck settings and airflow control allow the operator to tune the machine according to crop type, product density, impurity level, moisture, and desired separation accuracy.
The DSV-1000 Series is suitable for wheat, sesame seed, sunflower seed, pulses, rice, paddy, barley, maize, corn, oats, rye, sorghum, millet, chickpeas, lentils, beans, peas, soybeans, flaxseed, linseed, mustard seed, canola, cumin, coriander, fennel, coffee beans, cocoa beans, garden seeds, vegetable seeds, oilseeds, cereal grains, spices, and many other free-flowing agricultural products. It can be used as a standalone destoner machine or integrated into a complete MMCTECH processing line with seed cleaners, grain cleaners, screen graders, gravity separators, color sorters, conveyors, elevators, dust collection systems, bagging scales, silos, and automation control panels.
Compared with basic stone separation equipment, the MMCTECH DSV-1000 Series provides an industrial destoning structure with two screens, rubber ball screen cleaning, high aspirator air volume, separate aspirator motor configurations for heavy and light products, table setting motor, dual vibro motors, and manual or PLC-actuated seed inlet settings. This makes the machine suitable for facilities that process multiple crops and need stable destoning performance across different product densities.
The DSV-1000 Series is especially useful for sesame seed and sunflower seed processing because these products can be affected by stones, sand, soil particles, and dense impurities during harvesting and handling. The machine’s vibration deck and controlled airflow allow delicate products to be separated more carefully while maintaining product quality. For wheat and cereal grains, the DSV-1000 Series helps protect milling, dehulling, cleaning, conveying, and packaging equipment from damage caused by hard contaminants.
The machine provides listed capacity up to 22,000 lbs/hour (11 short tons/hour) on wheat with 47.4 lb/cu ft bulk density, 17,600 lbs/hour (8.8 short tons/hour) on sesame with 37.5 lb/cu ft bulk density, and 11,600 lbs/hour (5.8 short tons/hour) on sunflower seed with 21.8 lb/cu ft bulk density. Actual capacity depends on product type, bulk density, moisture level, stone content, impurity level, airflow setting, deck adjustment, feed rate, and processing target.
The DSV-1000 Series is designed with a 32.3 sq ft screening area, two screens, 48 x 50 in screen size, rubber ball screen cleaning system, heavy product aspirator motor, light product aspirator motor, table setting motor, dual vibro motors, and ST44 / birch wood construction. The machine supports North America and international electrical requirements and can be configured for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz, with standard voltage reference of 460 V depending on project configuration.
For facilities that require automation, the seed inlet settings can be supplied with manual adjustment or actuator control with PLC model configuration. MMCTECH can support conveyor integration, dust collection connection, electrical planning, automation control, layout design, and complete processing line engineering. This makes the DSV-1000 Series suitable for both standalone destoning applications and complete MMCTECH automation-supported grain and seed processing plants.
Best Ideal Stone Removal Applications
Wheat, Sesame Seed, Sunflower Seed, Pulses, Rice, Paddy, Barley, Maize, Corn, Oats, Rye, Sorghum, Millet, Chickpeas, Lentils, Beans, Peas, Soybeans, Flaxseed, Linseed, Mustard Seed, Canola, Cumin, Coriander, Fennel, Coffee Beans, Cocoa Beans, Garden Seeds, Vegetable Seeds, Oilseeds, Cereal Grains, Spices, Specialty Seeds, and Free-Flowing Agricultural Products.
Key Features of the MMCTECH DSV-1000 Series Vibration Type Destoner
- Vibration-Based Stone Separation: Removes stones, glass, metal fragments, sand, soil clods, and heavy impurities using vibration and airflow.
- Controlled Airflow System: Supports density separation for wheat, sesame, sunflower seed, pulses, grains, oilseeds, and specialty products.
- Adjustable Deck Settings: Allows operators to tune separation performance according to product type and impurity level.
- Two-Screen Structure: Provides stable product distribution and destoning performance.
- Rubber Ball Screen Cleaning: Helps keep screens open and maintain consistent operation.
- Separate Aspirator Motors: Includes aspirator motor configurations for heavy and light products.
- Manual or PLC-Actuated Inlet Settings: Supports manual control or automation-ready inlet adjustment.
- Multi-Crop Compatibility: Suitable for grains, pulses, oilseeds, spices, garden seeds, and specialty crops.
- Equipment Protection: Helps protect color sorters, mills, dehullers, polishers, conveyors, elevators, and packaging machines.
- North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial standards.
Where the DSV-1000 Series Is Used in a Processing Line
The MMCTECH DSV-1000 Series is commonly installed after pre-cleaning and before color sorting, gravity separation, dehulling, milling, polishing, seed treating, roasting, bagging, packaging, or storage. In complete seed and grain processing plants, it works as the main stone removal machine for improving final product quality and protecting downstream equipment.
Ideal Industries
- Seed Processing Plants
- Grain Cleaning Facilities
- Sesame Seed Cleaning Lines
- Sunflower Seed Processing Plants
- Pulse and Legume Processing Facilities
- Rice and Paddy Processing Lines
- Oilseed Processing Facilities
- Spice Cleaning Plants
- Food Ingredient Processing Facilities
- Commercial Agricultural Cooperatives
- Export Preparation Plants
- Turnkey Seed Processing Facilities
Why Choose MMCTECH?
MMCTECH manufactures vibration type destoner machines, pressure type destoners, stone separators, seed cleaners, grain cleaning equipment, gravity separators, screen graders, color sorters, conveyors, bagging systems, silos, dust collection systems, and automation solutions for agricultural processing facilities. The DSV-1000 Series is designed for processors who need reliable stone removal, adjustable airflow, vibration-based separation, product protection, industrial durability, and integration into modern seed and grain processing lines.
The MMCTECH Vibration Type Destoner Machine – DSV-1000 Series is a strong solution for companies searching for a vibration type destoner, seed stone separator, grain destoner machine, seed destoner machine, stone removal machine, destoner separator, stone separator, grain cleaning equipment, sesame destoner, sunflower seed destoner, wheat destoner, pulse destoner, or industrial destoner machine for professional agricultural product processing.
MMCTECH Seed Processing Machines & Equipment with Automation Solutions
The MMCTECH Vibration Type Destoner DSV-1000 Series is designed for efficient removal of stones, glass, and heavy impurities from wheat, sesame, sunflower seeds, pulses, oilseeds, grains, and many other agricultural products. With vibration-based separation, controlled airflow, adjustable deck settings, two-screen structure, and rubber ball screen cleaning, this model provides reliable performance for modern seed cleaning and grain processing plants.
Standard Table – North America and International Electrical Standards
| Machine Name |
Vibration Type Destoner - Seed Stone Separator |
| Model |
DSV-1000 Series |
| SKU |
DSV-1000 Series |
| Machine Type |
Vibration Type Stone Removal and Heavy Impurity Separator |
| Working Principle |
Vibration-Based Separation + Controlled Airflow + Density Stratification |
| Main Machine Weight |
1,323 lbs (600 kg) |
| Machine Size |
185 x 108 x 98 in (4,699 x 2,743 x 2,489 mm) |
| Machine Screening Area |
32.3 sq ft (3.0 m²) |
| Number of Screens |
2 |
| Machine Screen Size |
48 x 50 in (1,219 x 1,270 mm) |
| Screen Cleaning |
Rubber Ball |
| Machine Aspirator Motor for Heavy Products |
15 HP / 2800 RPM / 1 Unit |
| Machine Aspirator Motor for Light Products |
9.4 HP / 2800 RPM / 1 Unit |
| Machine Table Setting Motor |
0.19 HP / 14 RPM / 1 Unit |
| Machine Vibro Motor |
0.43 HP / 1000 RPM / 2 Units |
| Seed Inlet Settings |
Manual or Actuator with PLC Model |
| Noise Level |
72–82 dB |
| Aspirator Air Volume |
600–10,000 CFM |
| Machine Color |
Acrylic Gray - Acrylic White |
| Standard Voltage |
460 V |
| Total Power |
16–21.5 HP |
| Machine Manufacture Material |
ST44 / Birch Wood |
| Capacity on Wheat 47.4 lb/cu ft |
22,000 lbs/hour (11 short tons/hour) |
| Capacity on Sesame 37.5 lb/cu ft |
17,600 lbs/hour (8.8 short tons/hour) |
| Capacity on Sunflower Seed 21.8 lb/cu ft |
11,600 lbs/hour (5.8 short tons/hour) |
| Main Function |
Removal of stones, glass, metal fragments, sand, soil clods, and heavy impurities from grains, seeds, pulses, oilseeds, and specialty crops |
| Electrical Standards |
208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz |
The MMCTECH DSV-1000 Series Vibration Type Destoner can be supplied as a standalone seed stone separator or integrated into a complete seed cleaning, grain cleaning, sorting, conveying, dehulling, milling, storage, and bagging line. Capacity values may vary according to crop type, bulk density, impurity level, moisture level, stone content, airflow setting, deck adjustment, feed rate, and project configuration.
Frequently Asked Questions
What is the best machine for removing stones from seeds and grains?
The best machine for removing stones, glass, metal fragments, sand, and heavy impurities from seeds and grains is usually a destoner machine. The MMCTECH DSV-1000 Series uses vibration-based separation, controlled airflow, and adjustable deck settings to separate heavy impurities from clean product.
What is a vibration type destoner?
A vibration type destoner is a seed stone separator that uses a vibrating deck and airflow to separate dense impurities from lighter grains or seeds. Stones remain closer to the deck while clean product moves separately through the machine.
How does a vibration type destoner work?
Product is distributed onto the vibrating deck. Controlled airflow stratifies the product layer by density. Stones and heavy impurities stay lower on the deck and move toward the reject outlet, while clean product exits through the clean product outlet.
What is the working principle of a destoner?
The working principle of a destoner is density separation using airflow and deck movement. Airflow lifts or fluidizes lighter product, while heavier impurities such as stones, glass, metal, and soil clods remain lower and are discharged separately.
What is the function of a seed stone separator?
The function of a seed stone separator is to remove stones and dense impurities from seed lots before final grading, color sorting, treating, bagging, packaging, or storage. This improves product quality and protects downstream equipment.
Do I need a vibration type destoner or pressure type destoner?
The correct destoner depends on product type, capacity, density difference, impurity level, facility layout, and desired separation performance. A vibration type destoner is suitable for many grains, pulses, oilseeds, sesame, sunflower, and specialty products. MMCTECH can evaluate the product and recommend the correct machine.
Do I need a destoner, gravity separator, color sorter, or seed cleaner?
Each machine performs a different function. A seed cleaner removes general impurities, a destoner removes stones and heavy impurities, a gravity separator separates by density, and a color sorter removes visual defects. Many professional processing lines use these machines together.
Can the DSV-1000 Series remove stones from wheat?
Yes. The DSV-1000 Series can remove stones and heavy impurities from wheat. Listed wheat capacity is 22,000 lbs/hour (11 short tons/hour) based on 47.4 lb/cu ft bulk density, depending on product condition and machine settings.
Can the DSV-1000 Series remove stones from sesame seed?
Yes. The DSV-1000 Series can process sesame seed. Listed sesame capacity is 17,600 lbs/hour (8.8 short tons/hour) based on 37.5 lb/cu ft bulk density, depending on product condition, stone content, airflow, and deck settings.
Can the DSV-1000 Series remove stones from sunflower seed?
Yes. The DSV-1000 Series can process sunflower seed. Listed sunflower seed capacity is 11,600 lbs/hour (5.8 short tons/hour) based on 21.8 lb/cu ft bulk density, depending on product condition and separation target.
Can the DSV-1000 Series be used for pulses?
Yes. The DSV-1000 Series can be used for chickpeas, lentils, beans, peas, and other pulses where stones, soil clods, glass, metal fragments, and heavy impurities must be removed.
Can the DSV-1000 Series be used for rice and paddy?
Yes. The DSV-1000 Series can support rice and paddy destoning applications before polishing, color sorting, milling, or packaging when settings are adjusted according to product density and impurity level.
Can the DSV-1000 Series process oilseeds?
Yes. The machine can process sesame, sunflower seed, soybean, flaxseed, linseed, mustard seed, canola, and other oilseeds depending on product condition, bulk density, and separation target.
Can the DSV-1000 Series be used before a color sorter?
Yes. A destoner is commonly installed before a color sorter to remove stones, glass, metal pieces, and heavy impurities before optical sorting. This helps protect downstream equipment and improve product preparation.
Can the DSV-1000 Series be used before milling, dehulling, or polishing?
Yes. Removing stones before milling, dehulling, polishing, roasting, or packaging helps protect machinery from damage and reduces contamination risk in the final product.
What is the difference between a destoner and a gravity separator?
A destoner is mainly used to remove stones and heavy impurities from the product. A gravity separator is used to separate product fractions by density. Both use density differences, but their main purposes are different.
What is the difference between a destoner and a color sorter?
A destoner removes heavy physical impurities such as stones, glass, and metal fragments. A color sorter removes visual defects based on color or optical appearance. A destoner is usually installed before a color sorter in professional processing lines.
What is rubber ball screen cleaning?
Rubber ball screen cleaning helps keep the screens open by reducing screen blockage during operation. This supports stable product flow and consistent destoning performance.
What is the aspirator air volume of the DSV-1000 Series?
The DSV-1000 Series has an aspirator air volume range of 600–10,000 CFM depending on configuration and operating requirement.
How many screens does the DSV-1000 Series have?
The DSV-1000 Series has two screens with a listed screen size of 48 x 50 in and a total screening area of 32.3 sq ft.
Can the DSV-1000 Series be automated?
Yes. Seed inlet settings can be manual or supplied with actuator control and PLC model configuration depending on project requirement.
What electrical standards are available for the DSV-1000 Series?
The DSV-1000 Series can be configured for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz electrical standards for U.S., Canadian, and international industrial facilities.
How is vibration type destoner price determined?
Vibration type destoner price depends on machine configuration, deck size, airflow system, screen system, capacity requirement, automation level, electrical standard, conveyors, dust collection connection, installation layout, and whether the machine is supplied as a standalone unit or part of a complete processing line.
Where can I buy a vibration type destoner machine?
You can contact MMCTECH to discuss the DSV-1000 Series Vibration Type Destoner for wheat, sesame, sunflower seed, pulses, grains, oilseeds, specialty crops, and complete seed or grain processing line integration.
Does MMCTECH manufacture vibration type destoner machines?
Yes. MMCTECH manufactures vibration type destoners, pressure type destoners, stone separators, seed cleaners, grain cleaners, gravity separators, screen graders, color sorters, conveyors, bagging systems, silos, dust collection systems, automation solutions, and complete seed processing lines for North America and international markets.
