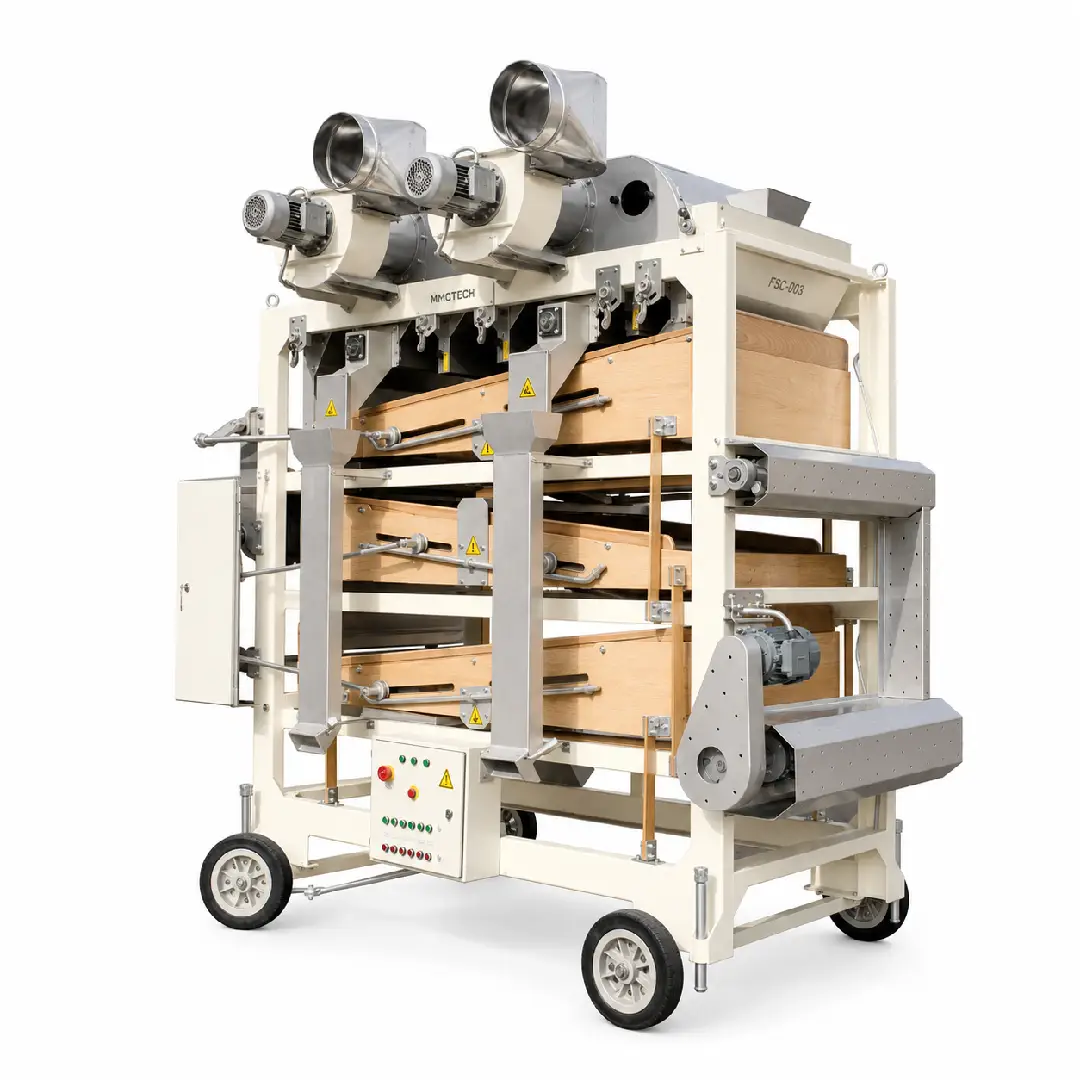

MMCTECH FSC-003 Three Deck Fine Seed Cleaner Machine for sale designed for precision seed cleaning, grain cleaning, pulse processing, oilseed cleaning and high-performance seed grading applications.

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series - Image 2

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series - Image 3

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series - Image 4

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series - Image 5

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series - Image 6

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series - Image 7

Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series

Name: Three Deck Fine Seed Cleaner | FSC-003 Seed Cleaning Machine
SKU: FSC-003 Series
Availability: InStock
Rating: 4.8 (33 reviews)

Model No: FSC-003 Series

The MMCTECH Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series is a high-capacity seed cleaning and grading support solution designed for grains, pulses, legumes, oilseeds, grass seeds, spice seeds, and specialty crops. With a triple deck screening system, two aspirator units, five-stage vacuum aspiration, eccentric vibration, brush-assisted screen cleaning, and 64.6 ft² (6 m²) screening area, the FSC-003 removes fine impurities, dust, seed chaff, light material, oversized particles, and inconsistent fractions before grading, gravity separation, color sorting, or packaging. It supports soybeans, chickpeas, beans, kidney beans, vetch, sesame, lentils, wheat, rice, sunflower, cumin, corn, and other agricultural products. The machine is suitable for commercial pulse cleaning, industrial grain cleaning plants, seed processing facilities, and complete MMCTECH automation-supported processing lines.

Get Quotes (704) 910-0090

MMCTECH Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series

The MMCTECH Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series is a high-capacity seed cleaning machine designed for advanced cleaning, screening, grading support, and light impurity separation in seed processing plants, grain cleaning facilities, pulse processing operations, oilseed cleaning lines, spice seed processing facilities, food-grade production plants, and commercial agricultural processing operations. Built as a powerful three deck fine seed cleaner, the FSC-003 combines a triple deck screening system, dual aspirator arrangement, five-stage vacuum aspiration, eccentric vibration, and brush-assisted screen cleaning to deliver high-purity results for a wide range of dry and granular products.

Modern seed cleaning requires more than basic screening. Agricultural processors need equipment that can remove dust, chaff, light impurities, broken pieces, fine particles, oversized foreign material, undersized product, seed chaff, and inconsistent fractions before final grading, gravity separation, color sorting, treating, packaging, storage, or shipment. The MMCTECH FSC-003 is engineered for these demanding requirements. It is suitable for facilities searching for seed cleaning, vacuum seed separator, seed cleaner, grain processing vacuum system, grass seed cleaner, screening machine seed, fine cleaner, grain seed cleaner machine, or commercial seed cleaning equipment.

The FSC-003 uses a three deck screening system supported by multi-stage vacuum aspiration. Product is fed into the machine and distributed evenly across the screen surfaces through eccentric vibration. The first screening level helps separate fine impurities and smaller unwanted particles. The second screening level improves product classification and removes larger impurities. The third screening level provides additional separation control for more accurate cleaning and grading preparation. At the same time, the vacuum aspiration system removes lightweight impurities such as dust, hulls, chaff, empty seeds, loose skins, straw particles, and light foreign material from the product stream.

This combination of triple screening and vacuum air separation makes the FSC-003 a strong solution for processors who need high cleaning accuracy and better product preparation before downstream equipment. The machine can improve product purity, reduce impurity load before color sorting, support better grading results, and prepare the product for gravity separation, seed treating, bagging, or packaging. For seed producers, cleaner product helps improve seed lot quality and seed treatment consistency. For grain processors, it supports better storage, handling, and packaging quality. For pulse processors, it helps remove dust, broken fragments, loose skins, and lightweight material before final sorting or export preparation.

The brush-assisted screen cleaning system is one of the key advantages of the MMCTECH FSC-003. During continuous operation, the brushes help keep screen perforations open and reduce clogging caused by dust, broken product, small seeds, sticky particles, or irregular crop shapes. This supports stable capacity, consistent cleaning efficiency, reduced downtime, and less manual intervention. For products such as soybean, chickpea, beans, kidney beans, vetch, sesame seed, lentils, wheat, rice, sunflower seed, cumin seed, corn, grass seed, and small specialty seeds, automatic screen cleaning helps maintain performance during long production shifts.

The MMCTECH FSC-003 is suitable for soybeans, chickpeas, beans, kidney beans, vetch, sesame seed, lentils, wheat, rice, sunflower seed, cumin seeds, corn, grain seeds, sorghum, millet, oats, barley, pulses, oilseeds, garden seeds, grass seeds, spice seeds, and specialty agricultural products. It can be used as a standalone triple deck seed cleaning machine or integrated into a complete MMCTECH seed processing line with pre-cleaners, fine cleaners, gravity separators, destoners, seed graders, color sorters, conveyors, elevators, seed treaters, bagging systems, and automation control panels.

The FSC-003 is especially valuable before optical color sorting. A color sorter performs better when the incoming product is cleaner, more uniform, and free from excessive dust and light impurities. By using the FSC-003 before color sorting, processors can reduce unnecessary load on the color sorter, improve sorting accuracy, and support higher final product quality. The machine can also be used before gravity separation to improve density separation performance, or before seed grading to reduce impurity load and improve screen efficiency.

MMCTECH manufactures the FSC-003 for North America and international markets. Capacity values are presented in lbs/hour for U.S. and Canadian operations, and the machine can be configured for standard industrial electrical systems including 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz. The FSC-003 supports commercial seed cleaning plants, industrial grain cleaning systems, pulse cleaning facilities, grass seed cleaning operations, spice seed cleaning lines, and multi-crop agricultural processing operations that need dependable cleaning performance and flexible crop compatibility.

Best Ideal Seed Cleaning and Grading Applications

Soybeans, Chickpeas, Beans, Kidney Beans, Vetch, Sesame Seed, Lentils, Wheat, Rice, Sunflower Seed, Cumin Seeds, Corn, Grain Seeds, Sorghum, Millet, Oats, Barley, Pulses, Oil Seeds, Garden Seeds, Grass Seeds, Spice Seeds, Specialty Seeds, and Granular Agricultural Products.

Key Features of the MMCTECH FSC-003 Three Deck Fine Seed Cleaner

Three Deck Screening System: Provides triple-screen cleaning and classification for improved impurity separation.
Dual Aspirator Design: Supports strong vacuum air separation for light impurity removal.
Five-Stage Vacuum Aspiration: Removes dust, chaff, hulls, empty seeds, loose skins, and lightweight unwanted material.
Brush-Assisted Screen Cleaning: Helps prevent screen blockage and supports continuous operation.
Eccentric Vibration: Distributes product evenly across the screen surfaces for stable cleaning performance.
High-Capacity Crop Cleaning: Supports soybeans, chickpeas, beans, lentils, sesame, wheat, rice, corn, sunflower, cumin, grass seed, and many other products.
Precision Seed Sorting Support: Helps prepare product before size grading, gravity separation, color sorting, treating, or packaging.
Commercial Pulse Cleaning: Suitable for chickpea grading equipment, bean sorting systems, lentil cleaning plants, and pulse processing facilities.
Industrial Grain Cleaning: Supports wheat grader and cleaner applications, corn cleaning machinery layouts, and grain seed processing equipment lines.
North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz industrial facilities.
Turnkey Line Integration: Can be integrated with MMCTECH conveyors, pre-cleaners, gravity separators, seed graders, color sorters, bagging systems, and automation solutions.

Where the FSC-003 Is Used in a Seed Processing Line

The MMCTECH FSC-003 can be installed after pre-cleaning to remove fine and light impurities before final grading or color sorting. It can be used before a gravity separator to improve product consistency and reduce light contamination. It can also be installed before a color sorter to improve optical sorting performance by reducing dust, seed chaff, and unwanted material. In complete processing plants, the FSC-003 works as an important fine cleaning stage between rough cleaning and final quality separation.

Ideal Industries

Seed Processing Plants
Commercial Seed Cleaning Facilities
Grain Cleaning Facilities
Pulse Processing Plants
Legume Processing Facilities
Oilseed Processing Lines
Grass Seed Cleaning Operations
Spice Seed Processing Facilities
Food Ingredient Processing Plants
Export Preparation Facilities
Seed Packaging Operations
Agricultural Cooperatives
Industrial Grain Cleaning Plants
Turnkey Seed Processing Facilities

Why Choose MMCTECH?

MMCTECH manufactures seed cleaning machines, fine seed cleaners, seed graders, grain cleaning equipment, agricultural seed sorting machines, conveyors, bagging systems, and automation solutions for agricultural processing facilities. The FSC-003 Series is designed for processors who need high-capacity cleaning, triple-screen classification, vacuum aspiration, brush screen cleaning, multi-crop flexibility, and dependable integration into modern seed processing lines.

The MMCTECH Three Deck Fine Seed Cleaner Machine – Classic FSC-003 Series is a strong solution for companies searching for a three deck fine seed cleaner, grains cleaning equipments, three deck screening system, five stage vacuum aspiration seed cleaner, triple deck seed cleaning machine, industrial grain grader and cleaner, precision seed sorting equipment, high efficiency seed cleaning solution, agricultural grain sorter, commercial pulse cleaning machinery, soybean cleaner machine, chickpea grading equipment, bean sorting system, sesame seed cleaner, lentil cleaning plant, wheat grader and cleaner, sunflower seed sorter, corn cleaning machinery, multi layer grain cleaner, triple screen seed grader, high purity seed processing machine, or commercial seed cleaning equipment manufacturers.

MMCTECH Seed Processing Machines & Equipment with Automation Solutions

The MMCTECH Classic FSC-003 Three Deck Fine Seed Cleaner is designed for high-capacity seed and grain cleaning operations in North America. Its triple-deck screening system combined with multi-stage vacuum aspiration ensures efficient separation of light impurities and precise cleaning support for multiple product sizes. Capacity values are presented in lbs/hour, and the machine is configured for U.S. and Canadian industrial electrical systems.

Standard Table – North America and International Electrical Standards

Machine Name	Three Deck Fine Seed Cleaner
Machine Code	Classic FSC-003
SKU	FSC-003 Series
Machine Type	Triple Deck Seed Cleaning and Screening System
Cleaning Principle	Three Deck Screening + Multi-Stage Vacuum Aspiration
Aspirator Units	2
Number of Screens	3
Screening Area	64.6 ft² (6 m²)
Screen Dimensions	39.4 x 78.7 in (1000 x 2000 mm)
Vacuum Cleaning Stages	5
Air Consumption	445,000 ft³/hour (12,600 m³/hour)
Motor Power	9.5 HP (7.1 kW)
Weight	3,880 lbs (1,760 kg)
Vibration Type	Eccentric Vibration
Screen Cleaning System	Brush-Assisted Screen Cleaning
Electrical Standards	208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz

Crop Capacity Table – FSC-003

Product	Capacity
Soybeans	6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour)
Chickpeas	6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour)
Beans	7,716 – 12,125 lbs/hour (3,500 – 5,500 kg/hour)
Kidney Beans	5,512 – 8,818 lbs/hour (2,500 – 4,000 kg/hour)
Vetch	4,409 – 8,818 lbs/hour (2,000 – 4,000 kg/hour)
Sesame Seed	4,409 – 6,614 lbs/hour (2,000 – 3,000 kg/hour)
Lentils	4,409 – 8,818 lbs/hour (2,000 – 4,000 kg/hour)
Wheat	7,716 – 11,023 lbs/hour (3,500 – 5,000 kg/hour)
Rice	4,189 – 6,614 lbs/hour (1,900 – 3,000 kg/hour)
Sunflower Seed	2,204 – 5,512 lbs/hour (1,000 – 2,500 kg/hour)
Cumin Seeds	1,763 – 2,204 lbs/hour (800 – 1,000 kg/hour)

The MMCTECH FSC-003 Three Deck Fine Seed Cleaner can be supplied as a standalone triple deck seed cleaning machine or integrated into a complete seed cleaning, grading, sorting, treating, conveying, and bagging line. Capacity values may vary according to product type, impurity level, moisture level, screen perforation, airflow setting, feed rate, and project configuration.

Technical Documents & Project Support

Technical specifications, machine configuration details, screen options, vacuum aspiration requirements, airflow settings, electrical standards, installation layouts, crop capacity planning, spare parts information, and project-specific engineering support for the MMCTECH FSC-003 Three Deck Fine Seed Cleaner Machine are available upon request.

MMCTECH can help evaluate your crop type, impurity level, required capacity, facility layout, automation needs, and final product quality target to recommend the most suitable seed cleaning equipment or complete processing line.

Contact MMCTECH: Request technical information or project support

Frequently Asked Questions

What is the best seed cleaning machine for my crop?

The best seed cleaning machine depends on your crop type, impurity level, seed size, required capacity, moisture level, and final product quality target. Soybeans, chickpeas, beans, lentils, sesame, wheat, rice, sunflower, cumin, grass seed, and corn may require different screen perforations, airflow settings, and processing line layouts. MMCTECH can evaluate your product and recommend the most suitable machine or complete seed processing line.

How do I choose between a single deck, two deck, and three deck fine seed cleaner?

A single deck fine cleaner is suitable for compact fine cleaning needs. A two deck fine cleaner provides more screening area and better separation control. A three deck fine cleaner like the MMCTECH FSC-003 is recommended when higher capacity, stronger cleaning flexibility, and triple-deck screening are required for commercial or industrial seed and grain processing.

Do I need a seed cleaner, seed grader, gravity separator, or color sorter?

Most professional seed processing lines use more than one machine. A seed cleaner removes dust, chaff, light impurities, and foreign material. A seed grader separates product by size. A gravity separator separates by density. A color sorter removes discolored or defective product. The correct combination depends on your crop and final quality requirement.

What is the best machine before a color sorter?

Before a color sorter, the product should usually pass through cleaning and grading equipment to remove dust, chaff, light impurities, broken pieces, oversized material, and inconsistent size fractions. A three deck fine seed cleaner like the MMCTECH FSC-003 can help prepare a cleaner and more uniform product stream before optical sorting.

What is a three deck fine seed cleaner?

A three deck fine seed cleaner is a seed cleaning machine that uses three screen decks to separate fine, coarse, oversized, and unwanted material while a vacuum aspiration system removes light impurities. The MMCTECH FSC-003 combines triple-deck screening with multi-stage vacuum aspiration.

What is a three deck screening system?

A three deck screening system uses three screen levels to improve separation control. This allows the machine to remove fine impurities, large impurities, broken pieces, and inconsistent material more effectively than a single screen system.

What is a vacuum aspiration seed cleaner?

A vacuum aspiration seed cleaner uses controlled air suction to remove light impurities such as dust, chaff, seed hulls, empty seeds, straw particles, and lightweight foreign material from the product stream.

Is the FSC-003 suitable for soybeans, chickpeas, beans, lentils, sesame, wheat, rice, sunflower, cumin, and corn?

Yes. The FSC-003 is suitable for a wide range of products including soybeans, chickpeas, beans, kidney beans, vetch, sesame seed, lentils, wheat, rice, sunflower seed, cumin seeds, corn, pulses, oilseeds, grains, grass seeds, and spice seeds. Screen selection and airflow settings should be adjusted according to each crop.

What capacity seed cleaner do I need?

The required capacity depends on your daily production target, crop type, impurity level, operating hours, and whether the machine is used as a standalone cleaner or part of a complete processing line. For FSC-003, product capacity varies by crop, ranging from lower capacities for cumin seed and sunflower seed to higher capacities for beans, wheat, soybeans, and chickpeas.

Is a three deck fine seed cleaner better than a two deck fine seed cleaner?

A three deck fine seed cleaner provides more screening area and more separation control than a two deck model. It is usually the better choice when the facility needs higher cleaning flexibility, triple-deck separation, stronger preparation before color sorting, and industrial seed cleaning performance.

Can the FSC-003 be used as a seed cleaner and grader?

Yes. The FSC-003 is primarily a fine seed cleaner, but its three deck screening system can support cleaning and grading preparation depending on screen perforation, crop type, and processing target.

Can the FSC-003 be used before a gravity separator?

Yes. Cleaning before gravity separation helps remove dust, light impurities, and size-inconsistent material. This can improve product flow and support better density separation performance in gravity separator machines.

Can the FSC-003 be installed in an existing grain cleaning line?

Yes. The FSC-003 can be integrated into existing grain cleaning equipment lines, seed processing plants, pulse processing facilities, and commercial agricultural processing systems with conveyors, elevators, pre-cleaners, graders, gravity separators, color sorters, and bagging equipment.

Is the FSC-003 suitable for commercial pulse cleaning?

Yes. The FSC-003 is suitable for commercial pulse cleaning applications such as chickpeas, lentils, beans, kidney beans, vetch, and similar legumes. It can remove dust, light impurities, fine particles, broken pieces, and unwanted material before grading or color sorting.

Can the FSC-003 clean soybeans?

Yes. The FSC-003 can be used as soybean cleaner machine equipment. The listed soybean capacity range is 6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour), depending on product condition, impurity level, moisture, screen selection, and feed rate.

Can the FSC-003 clean chickpeas?

Yes. The FSC-003 can support chickpea grading equipment and cleaning applications. The listed chickpea capacity range is 6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour), depending on product condition and processing target.

Can the FSC-003 clean beans and kidney beans?

Yes. The FSC-003 can be used for bean sorting systems and kidney bean cleaning. Listed capacity is 7,716 – 12,125 lbs/hour (3,500 – 5,500 kg/hour) for beans and 5,512 – 8,818 lbs/hour (2,500 – 4,000 kg/hour) for kidney beans.

Can the FSC-003 clean sesame seed?

Yes. With the correct screen perforation and airflow adjustment, the FSC-003 can be used as a sesame seed cleaner. Listed sesame capacity is 4,409 – 6,614 lbs/hour (2,000 – 3,000 kg/hour).

Can the FSC-003 clean lentils?

Yes. The FSC-003 can be used as a lentil cleaning plant machine for removing dust, light impurities, broken pieces, and fine unwanted material. Listed lentil capacity is 4,409 – 8,818 lbs/hour (2,000 – 4,000 kg/hour).

Can the FSC-003 clean wheat and rice?

Yes. The FSC-003 can support wheat grader and cleaner applications as well as rice cleaning. Listed wheat capacity is 7,716 – 11,023 lbs/hour (3,500 – 5,000 kg/hour), and listed rice capacity is 4,189 – 6,614 lbs/hour (1,900 – 3,000 kg/hour).

Can the FSC-003 clean sunflower and cumin seeds?

Yes. The FSC-003 can clean sunflower seed and cumin seed with proper screen and airflow settings. Listed sunflower capacity is 2,204 – 5,512 lbs/hour (1,000 – 2,500 kg/hour), and listed cumin seed capacity is 1,763 – 2,204 lbs/hour (800 – 1,000 kg/hour).

Can the FSC-003 be used for grass seed cleaning?

Yes. The FSC-003 can be configured for grass seed cleaner applications when screen perforation, airflow setting, and feed rate are selected according to the grass seed type and impurity level.

What is the screen area of the FSC-003?

The FSC-003 has a total screening area of 64.6 ft² (6 m²), using three screen decks for fine cleaning and product classification.

What is the motor power of the FSC-003?

The FSC-003 has a motor power requirement of approximately 9.5 HP (7.1 kW).

What is the weight of the FSC-003?

The FSC-003 weighs approximately 3,880 lbs (1,760 kg).

What electrical standards are available for the FSC-003?

The FSC-003 can be configured for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz electrical standards for U.S., Canadian, and international industrial facilities.

How is vacuum aspiration seed cleaner price determined?

Vacuum aspiration seed cleaner price depends on machine model, screen configuration, airflow system, capacity requirement, electrical configuration, automation level, conveyors, installation layout, and whether the machine is supplied as a standalone unit or part of a complete seed processing line.

Where can I buy a three deck seed cleaner?

You can contact MMCTECH to discuss FSC-003 three deck seed cleaner options for seed cleaning, grain cleaning, pulse processing, grass seed cleaning, spice seed cleaning, color sorting preparation, and complete processing line integration.

Does MMCTECH manufacture seed cleaning equipment?

Yes. MMCTECH manufactures seed cleaning machines, fine seed cleaners, seed graders, grain cleaning equipment, conveyors, bagging systems, automation solutions, and complete seed processing lines for North America and international markets.
