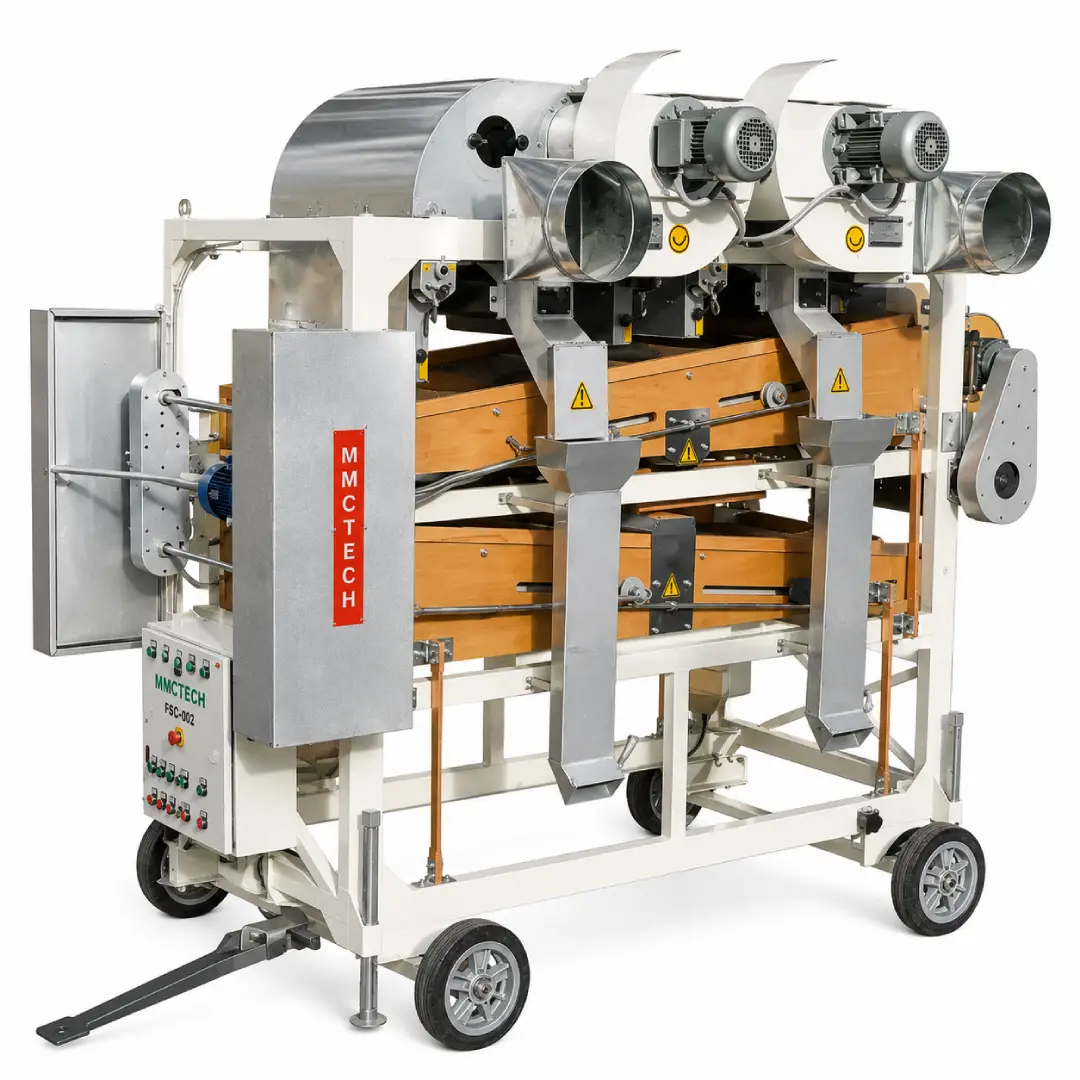

MMCTECH FSC-002 Two Deck Fine Seed Cleaner Machine for sale designed for precision seed cleaning, seed grading, grain cleaning, pulse processing and light impurity separation applications.

Two Deck Fine Seed Cleaner with dual-deck screening and 5-stage vacuum system for 99.99% seed cleaning performance

Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series - Image 3

Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series - Image 4

Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series - Image 5

Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series - Image 6

Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series - Image 7

Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series

Name: Two Deck Fine Seed Cleaner | FSC-002 Seed Cleaning Machine
SKU: FSC-002 Series
Availability: InStock
Rating: 4.8 (174 reviews)

Model No: FSC-002 Series

The MMCTECH Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series is a high-performance seed cleaning and grading solution designed for grains, pulses, legumes, oilseeds, spice seeds, and specialty crops. With dual-sieve screening, five-stage vacuum aspiration, eccentric vibration, brush-assisted screen cleaning, and 43.1 ft² (4 m²) screening area, the FSC-002 removes fine impurities, dust, light material, oversized particles, and inconsistent fractions before grading, gravity separation, color sorting, or packaging. It supports soybeans, chickpeas, beans, kidney beans, vetch, sesame, lentils, wheat, rice, sunflower, cumin, corn, and other agricultural products. The machine is suitable for commercial pulse cleaning, industrial grain cleaning plants, seed processing facilities, and complete MMCTECH automation-supported processing lines.

Get Quotes (704) 910-0090

MMCTECH Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series

The MMCTECH Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series is a high-performance seed cleaning machine designed for precise cleaning, screening, grading, and light impurity separation in seed processing plants, grain cleaning facilities, pulse processing operations, oilseed cleaning lines, spice seed processing facilities, food-grade production plants, and commercial agricultural processing operations. Built as a powerful two deck fine seed cleaner, the FSC-002 combines dual-sieve screening, five-stage vacuum aspiration, eccentric vibration, and brush-assisted screen cleaning to deliver high-purity results for a wide range of dry and granular products.

Modern seed cleaning requires more than basic separation. Agricultural processors need equipment that can remove dust, chaff, light impurities, broken pieces, fine particles, oversized foreign material, undersized product, and inconsistent fractions before final grading, gravity separation, color sorting, treating, packaging, storage, or shipment. The MMCTECH FSC-002 is engineered for these demanding requirements. It is suitable for facilities searching for a dual sieve seed cleaner, double deck seed cleaning machine, vacuum air aspiration seed cleaner, industrial grain cleaner and grader, agricultural seed sorting machine, commercial pulse cleaner, or high-purity seed separator.

The FSC-002 uses a double deck screening system supported by a five-stage vacuum aspiration unit. Product is fed into the machine and distributed evenly across the screen surfaces through eccentric vibration. The first screening level helps separate fine impurities and smaller unwanted material, while the second screening level helps remove larger impurities and support more accurate product classification. At the same time, the vacuum aspiration system removes lightweight impurities such as dust, hulls, chaff, empty seeds, loose skins, and light foreign material from the product stream.

This combination of screening and air separation makes the FSC-002 a strong solution for processors who need both cleaning and classification in one compact system. The machine can improve product purity, reduce impurity load before color sorting, support better grading results, and prepare the product for downstream processing. For seed producers, cleaner product helps improve seed lot quality and seed treatment consistency. For grain processors, it supports better storage, handling, and packaging quality. For pulse processors, it helps remove dust, broken fragments, loose skins, and lightweight material before final sorting or export preparation.

The brush-assisted screen cleaning system is one of the most important features of the MMCTECH FSC-002. During continuous operation, the brushes help keep screen perforations open and reduce clogging caused by fine dust, broken product, small seeds, sticky particles, or irregular crop shapes. This supports stable capacity, consistent cleaning efficiency, reduced downtime, and less manual intervention. For sesame seed, cumin seed, lentils, chickpeas, beans, vetch, sunflower seed, wheat, rice, corn, and other products, automatic screen cleaning helps maintain performance during long production shifts.

The MMCTECH FSC-002 is suitable for soybeans, chickpeas, beans, kidney beans, vetch, sesame seed, lentils, wheat, rice, sunflower seed, cumin seeds, corn, grain seeds, sorghum, millet, oats, barley, pulses, oilseeds, garden seeds, spice seeds, and specialty agricultural products. It can be used as a standalone seed cleaning and grading machine or integrated into a complete MMCTECH seed processing line with pre-cleaners, fine cleaners, gravity separators, destoners, seed graders, color sorters, conveyors, elevators, seed treaters, bagging systems, and automation control panels.

The FSC-002 is especially valuable before optical color sorting. A color sorter performs better when the incoming product is cleaner, more uniform, and free from excessive dust and light impurities. By using the FSC-002 before color sorting, processors can reduce unnecessary load on the color sorter, improve sorting accuracy, and support higher final product quality. The machine can also be used before gravity separation to improve density separation performance, or before seed grading to reduce impurity load and improve screen efficiency.

MMCTECH manufactures the FSC-002 for North America and international markets. Capacity values are presented in lbs/hour for U.S. and Canadian operations, and the machine can be configured for standard industrial electrical systems including 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz. The FSC-002 supports commercial seed cleaning plants, industrial grain cleaning systems, pulse cleaning facilities, and multi-crop agricultural processing operations that need dependable cleaning performance and flexible crop compatibility.

Best Ideal Seed Cleaning Applications

Soybeans, Chickpeas, Beans, Kidney Beans, Vetch, Sesame Seed, Lentils, Wheat, Rice, Sunflower Seed, Cumin Seeds, Corn, Grain Seeds, Sorghum, Millet, Oats, Barley, Pulses, Oil Seeds, Garden Seeds, Spice Seeds, Specialty Seeds, and Granular Agricultural Products.

Key Features of the MMCTECH FSC-002 Two Deck Fine Seed Cleaner

Two Deck Screening System: Provides dual-sieve cleaning and classification for better impurity separation.
Five-Stage Vacuum Aspiration: Removes dust, light impurities, hulls, chaff, and lightweight unwanted material.
Brush-Assisted Screen Cleaning: Helps prevent screen blockage and supports continuous operation.
Eccentric Vibration: Distributes product evenly across the screen surface for stable cleaning performance.
High-Capacity Crop Cleaning: Supports soybeans, chickpeas, beans, lentils, sesame, wheat, rice, corn, sunflower, cumin, and many other products.
Precision Seed Grading Support: Helps prepare product before size grading, gravity separation, color sorting, treating, or packaging.
Commercial Pulse Cleaning: Suitable for chickpea grading equipment, bean sorting machinery, lentil cleaning systems, and pulse processing plants.
Industrial Grain Cleaning: Supports wheat cleaner and grader applications, corn sorting machine layouts, and grain seed processing equipment lines.
North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz industrial facilities.
Turnkey Line Integration: Can be integrated with MMCTECH conveyors, pre-cleaners, gravity separators, seed graders, color sorters, bagging systems, and automation solutions.

Where the FSC-002 Is Used in a Seed Processing Line

The MMCTECH FSC-002 can be installed after pre-cleaning to remove fine and light impurities before final grading or color sorting. It can be used before a gravity separator to improve product consistency and reduce light contamination. It can also be installed before a color sorter to improve optical sorting performance by reducing dust and unwanted material. In complete processing plants, the FSC-002 works as an important fine cleaning stage between rough cleaning and final quality separation.

Ideal Industries

Seed Processing Plants
Commercial Seed Cleaning Facilities
Grain Cleaning Facilities
Pulse Processing Plants
Legume Processing Facilities
Oilseed Processing Lines
Spice Seed Processing Facilities
Food Ingredient Processing Plants
Export Preparation Facilities
Seed Packaging Operations
Agricultural Cooperatives
Industrial Grain Cleaning Plants
Turnkey Seed Processing Facilities

Why Choose MMCTECH?

MMCTECH manufactures seed cleaning machines, fine seed cleaners, seed graders, grain cleaning equipment, agricultural seed sorting machines, conveyors, bagging systems, and automation solutions for agricultural processing facilities. The FSC-002 Series is designed for processors who need high-capacity cleaning, dual-sieve classification, vacuum aspiration, brush screen cleaning, multi-crop flexibility, and dependable integration into modern seed processing lines.

The MMCTECH Two Deck Fine Seed Cleaner Machine – Classic FSC-002 Series is a strong solution for companies searching for a two deck fine seed cleaner, high performance seed screening solution, dual sieve seed cleaner, five stage vacuum aspiration seed cleaner, double deck seed cleaning machine, precision seed grading equipment, industrial grain cleaner and grader, agricultural seed sorting machine, commercial pulse cleaner, soybean cleaning machine, chickpea grading equipment, bean sorting machinery, vetch seed cleaner, sesame seed sorter, lentil cleaning system, wheat cleaner and grader, sunflower seed grader, cumin seed cleaning machine, corn sorting machine, grain seed processing equipment, high purity seed separator, double layer grain grader, vacuum air aspiration seed cleaner, heavy duty grain cleaning machinery, or seed cleaning equipment manufacturers.

MMCTECH Seed Processing Machines & Equipment with Automation Solutions

The FSC-002 double deck fine cleaner is engineered for North American operations with the support of MMCTECH Seed Processing Machines & Equipment with Automation Solutions. It provides high-capacity cleaning and classification for seed and grain processing facilities. Capacity values are presented in lbs/hour, and the system is configured for standard U.S. and Canadian industrial electrical systems.

Standard Table – North America and International Electrical Standards

Machine Name	Two Deck Fine Seed Cleaner
Machine Code	Classic FSC-002
SKU	FSC-002 Series
Machine Type	Double Deck Seed Cleaning and Screening System
Cleaning Principle	Dual Sieve Screening + Five-Stage Vacuum Aspiration
Number of Screens	2
Screening Area	43.1 ft² (4 m²)
Screen Dimensions	39.4 x 78.7 in (1000 x 2000 mm)
Vacuum Cleaning Stages	5
Air Consumption	445,000 ft³/hour (12,600 m³/hour)
Motor Power	9 HP (6.7 kW)
Weight	3,417 lbs (1,550 kg)
Vibration Type	Eccentric Vibration
Screen Cleaning System	Brush-Assisted Screen Cleaning
Electrical Standards	208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz

Crop Capacity Table – FSC-002

Product	Capacity
Soybeans	6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour)
Chickpeas	6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour)
Beans	7,716 – 12,125 lbs/hour (3,500 – 5,500 kg/hour)
Kidney Beans	5,512 – 8,818 lbs/hour (2,500 – 4,000 kg/hour)
Vetch	4,409 – 8,818 lbs/hour (2,000 – 4,000 kg/hour)
Sesame Seed	4,409 – 6,614 lbs/hour (2,000 – 3,000 kg/hour)
Lentils	4,409 – 8,818 lbs/hour (2,000 – 4,000 kg/hour)
Wheat	7,716 – 11,023 lbs/hour (3,500 – 5,000 kg/hour)
Rice	4,189 – 6,614 lbs/hour (1,900 – 3,000 kg/hour)
Sunflower Seed	2,204 – 5,512 lbs/hour (1,000 – 2,500 kg/hour)
Cumin Seeds	1,763 – 2,204 lbs/hour (800 – 1,000 kg/hour)

The MMCTECH FSC-002 Two Deck Fine Seed Cleaner can be supplied as a standalone double deck seed cleaning machine or integrated into a complete seed cleaning, grading, sorting, treating, conveying, and bagging line. Capacity values may vary according to product type, impurity level, moisture level, screen perforation, airflow setting, feed rate, and project configuration.

Technical Documents & Project Support

Technical specifications, machine configuration details, screen options, vacuum aspiration requirements, airflow settings, electrical standards, installation layouts, crop capacity planning, spare parts information, and project-specific engineering support for the MMCTECH FSC-002 Two Deck Fine Seed Cleaner Machine are available upon request.

MMCTECH can help evaluate your crop type, impurity level, required capacity, facility layout, automation needs, and final product quality target to recommend the most suitable seed cleaning equipment or complete processing line.

Contact MMCTECH: Request technical information or project support

Frequently Asked Questions

What is the best seed cleaning machine for my crop?

The best seed cleaning machine depends on your crop type, impurity level, required capacity, seed size, moisture level, and final product quality target. Soybeans, chickpeas, beans, lentils, sesame, wheat, rice, sunflower, cumin, and corn may require different screen perforations, airflow settings, and processing line layouts. MMCTECH can evaluate your product and recommend the most suitable machine or complete seed processing line.

How do I choose the right seed cleaner or seed grader?

The right equipment is selected according to product type, impurity level, required purity, size separation needs, processing capacity, facility space, electrical standard, and whether the product will go to color sorting, gravity separation, seed treating, packaging, or export preparation. A seed cleaner removes impurities, while a seed grader separates product by size.

Do I need a seed cleaner, seed grader, gravity separator, or color sorter?

Most professional seed processing lines use more than one machine. A seed cleaner removes dust, chaff, light impurities, and foreign material. A seed grader separates product by size. A gravity separator separates by density. A color sorter removes discolored or defective product. The correct combination depends on your crop and final quality requirement.

What is the best machine before a color sorter?

Before a color sorter, the product should usually pass through cleaning and grading equipment to remove dust, light impurities, broken pieces, oversized material, and inconsistent size fractions. A two deck fine seed cleaner like the MMCTECH FSC-002 can help prepare a cleaner and more uniform product stream before optical sorting.

Is the FSC-002 suitable for soybeans, chickpeas, beans, lentils, sesame, wheat, rice, sunflower, cumin, and corn?

Yes. The FSC-002 is suitable for a wide range of products including soybeans, chickpeas, beans, kidney beans, vetch, sesame seed, lentils, wheat, rice, sunflower seed, cumin seeds, corn, pulses, oilseeds, grains, and spice seeds. Screen selection and airflow settings should be adjusted according to each crop.

What capacity seed cleaner do I need?

The required capacity depends on your daily production target, crop type, impurity level, operating hours, and whether the machine is used as a standalone cleaner or part of a complete processing line. For FSC-002, product capacity varies by crop, ranging from lower capacities for cumin seed and sunflower seed to higher capacities for beans, wheat, soybeans, and chickpeas.

Is a two deck fine seed cleaner better than a single deck fine seed cleaner?

A two deck fine seed cleaner provides more screening area and more separation control than a single deck model. It is usually a better choice when the facility needs higher capacity, better separation of fine and large impurities, and more flexible cleaning for multiple crops.

What is a dual sieve seed cleaner?

A dual sieve seed cleaner uses two screen decks to separate unwanted material from the product. One deck can help remove fine impurities, while the other can help separate larger impurities or support better classification before downstream processing.

What is a five-stage vacuum aspiration seed cleaner?

A five-stage vacuum aspiration seed cleaner uses multiple air separation channels to remove light impurities such as dust, chaff, hulls, empty seeds, loose skins, and lightweight foreign material from the product stream. This improves final product purity and prepares the product for grading, color sorting, or packaging.

What is the difference between seed cleaning and seed grading?

Seed cleaning removes impurities such as dust, straw, chaff, light material, broken pieces, and foreign material. Seed grading separates product according to size. The FSC-002 supports cleaning and classification by combining double deck screening with vacuum aspiration.

Can the FSC-002 be used as a seed cleaning and grading machine?

Yes. The FSC-002 is primarily a fine seed cleaner, but its double deck screening system can support cleaning and basic classification depending on screen perforation, crop type, and processing target.

Can the FSC-002 be used before a gravity separator?

Yes. Cleaning before gravity separation helps remove dust, light impurities, and size-inconsistent material. This can improve product flow and support better density separation performance in gravity separator machines.

Can the FSC-002 be installed in an existing grain cleaning line?

Yes. The FSC-002 can be integrated into existing grain cleaning equipment lines, seed processing plants, pulse processing facilities, and commercial agricultural processing systems with conveyors, elevators, pre-cleaners, graders, gravity separators, color sorters, and bagging equipment.

Is the FSC-002 suitable for commercial pulse cleaning?

Yes. The FSC-002 is suitable for commercial pulse cleaner applications such as chickpeas, lentils, beans, kidney beans, vetch, and similar legumes. It can remove dust, light impurities, fine particles, broken pieces, and unwanted material before grading or color sorting.

Can the FSC-002 clean soybeans?

Yes. The FSC-002 can be used as soybean cleaning machine equipment. The listed soybean capacity range is 6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour), depending on product condition, impurity level, moisture, screen selection, and feed rate.

Can the FSC-002 clean chickpeas?

Yes. The FSC-002 can support chickpea grading equipment and cleaning applications. The listed chickpea capacity range is 6,614 – 11,023 lbs/hour (3,000 – 5,000 kg/hour), depending on product condition and processing target.

Can the FSC-002 clean beans and kidney beans?

Yes. The FSC-002 can be used for bean sorting machinery and kidney bean cleaning. Listed capacity is 7,716 – 12,125 lbs/hour (3,500 – 5,500 kg/hour) for beans and 5,512 – 8,818 lbs/hour (2,500 – 4,000 kg/hour) for kidney beans.

Can the FSC-002 clean sesame seed?

Yes. With the correct screen perforation and airflow adjustment, the FSC-002 can be used as a sesame seed sorter or sesame seed cleaner. Listed sesame capacity is 4,409 – 6,614 lbs/hour (2,000 – 3,000 kg/hour).

Can the FSC-002 clean lentils?

Yes. The FSC-002 can be used as a lentil cleaning system for removing dust, light impurities, broken pieces, and fine unwanted material. Listed lentil capacity is 4,409 – 8,818 lbs/hour (2,000 – 4,000 kg/hour).

Can the FSC-002 clean wheat and rice?

Yes. The FSC-002 can support wheat cleaner and grader applications as well as rice cleaning. Listed wheat capacity is 7,716 – 11,023 lbs/hour (3,500 – 5,000 kg/hour), and listed rice capacity is 4,189 – 6,614 lbs/hour (1,900 – 3,000 kg/hour).

Can the FSC-002 clean sunflower and cumin seeds?

Yes. The FSC-002 can clean sunflower seed and cumin seed with proper screen and airflow settings. Listed sunflower capacity is 2,204 – 5,512 lbs/hour (1,000 – 2,500 kg/hour), and listed cumin seed capacity is 1,763 – 2,204 lbs/hour (800 – 1,000 kg/hour).

What is the screen area of the FSC-002?

The FSC-002 has a total screening area of 43.1 ft² (4 m²), using two screen decks for fine cleaning and product classification.

What is the motor power of the FSC-002?

The FSC-002 has a motor power requirement of approximately 9 HP (6.7 kW).

What is the weight of the FSC-002?

The FSC-002 weighs approximately 3,417 lbs (1,550 kg).

What electrical standards are available for the FSC-002?

The FSC-002 can be configured for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz electrical standards for U.S., Canadian, and international industrial facilities.

How is commercial seed cleaner price determined?

Commercial seed cleaner price depends on machine model, screen configuration, airflow system, capacity requirement, electrical configuration, automation level, conveyors, installation layout, and whether the machine is supplied as a standalone unit or part of a complete seed processing line.

Where can I buy a two deck seed cleaner?

You can contact MMCTECH to discuss FSC-002 two deck seed cleaner options for seed cleaning, grain cleaning, pulse processing, spice seed cleaning, color sorting preparation, and complete processing line integration.

Does MMCTECH manufacture seed cleaning equipment?

Yes. MMCTECH manufactures seed cleaning machines, fine seed cleaners, seed graders, grain cleaning equipment, conveyors, bagging systems, automation solutions, and complete seed processing lines for North America and international markets.
