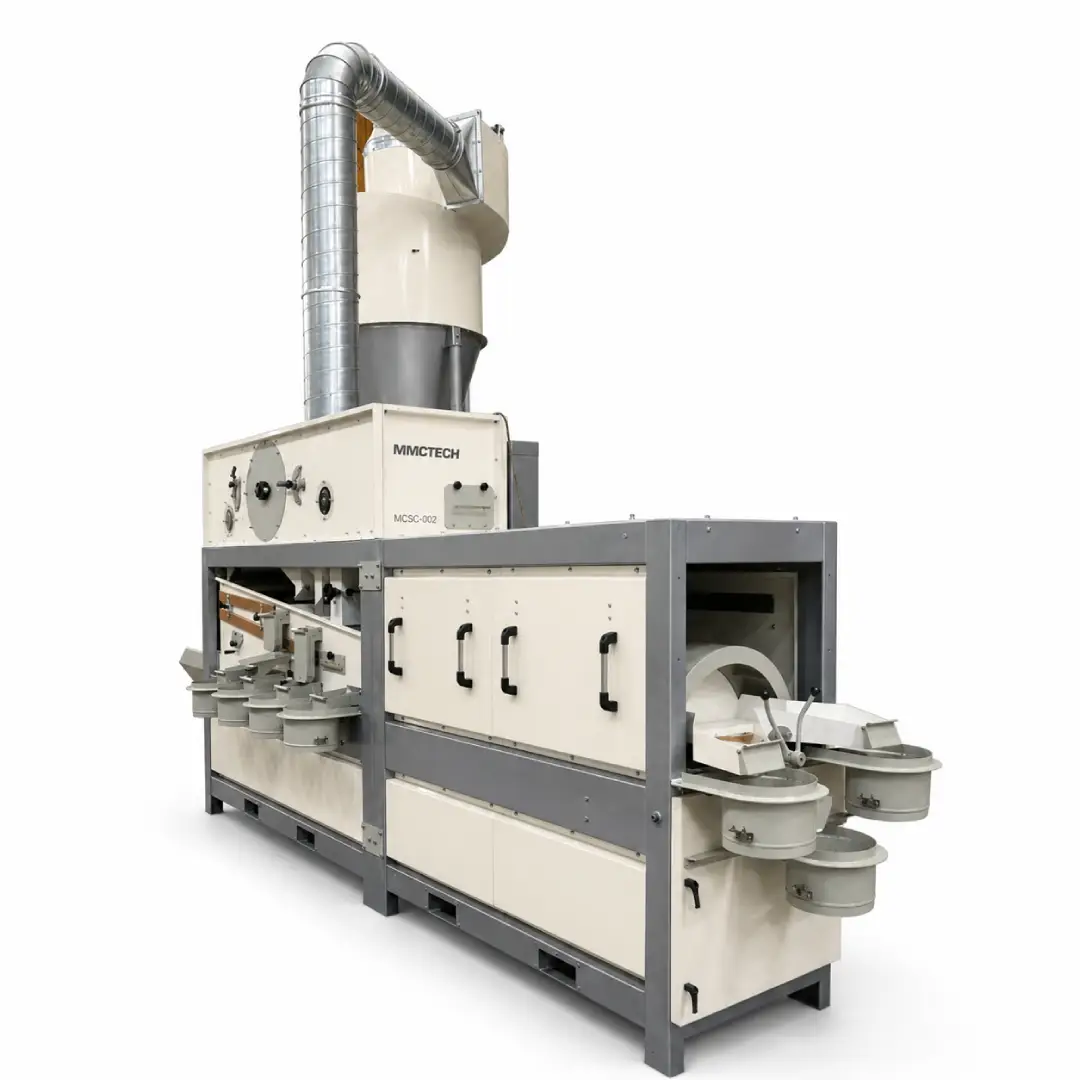

MMCTECH MCSC-002 Combi Seed Cleaner Machine for sale designed for seed cleaning, grain cleaning, pulse processing, air aspiration cleaning and precision seed grading applications.

Combi Seed Cleaner Machine – MCSC-002 Series

Name: Combi Seed Cleaner Machine | MCSC-002 Seed Cleaner
SKU: MCSC-002 Series
Availability: InStock
Rating: 4.7 (79 reviews)

Model No: MCSC-002 Series

The MMCTECH Combi Seed Cleaner Machine – Classic MCSC-002 Series is a high-performance combined seed cleaning and grading system designed for wheat, corn, rice, soybeans, sesame, chickpeas, lentils, sunflower seed, mustard seed, oilseeds, grass seeds, cereal grains, pulses, and free-flowing agricultural products. With two screen layers, air aspiration, upper screen agitator cleaning, lower screen brush cleaning, 27.1 ft² (2.52 m²) screen area, six motors, and wheat capacity up to 17,637 lbs/hour (8 t/hour) for pre-cleaning and 11,023 lbs/hour (5 t/hour) for fine cleaning, the MCSC-002 supports modern seed cleaning, grain cleaning, multi-crop cleaning, and grading applications. It can be used as a standalone seed cleaner machine or integrated with MMCTECH conveyors, graders, gravity separators, color sorters, bagging systems, silos, and automation control systems.

Get Quotes (704) 910-0090

MMCTECH Combi Seed Cleaner Machine – Classic MCSC-002 Series

The MMCTECH Combi Seed Cleaner Machine – Classic MCSC-002 Series is a high-performance seed cleaner machine designed for multi-crop cleaning, pre-cleaning, fine cleaning, grading support, and impurity removal in modern seed processing plants, grain cleaning facilities, cereal cleaning lines, pulse processing operations, oilseed cleaning systems, grass seed cleaning applications, and specialty crop processing plants. Built as a combined seed cleaning and grading system, the MCSC-002 brings together multi-layer screening, air aspiration, agitator-supported upper screen cleaning, brush-supported lower screen cleaning, and compact industrial construction in one professional machine platform.

The MCSC-002 is designed for facilities that need a stronger and larger-capacity solution than a small seed cleaning machine, while still requiring a compact and efficient design. It helps remove large impurities, fine particles, broken material, dust, chaff, light impurities, hulls, straw particles, and unwanted crop residues from free-flowing agricultural products. This makes it a strong solution for customers searching for a grain seed cleaner machine, seed cleaning machine, seed cleaning and grading machine, multi crop cleaning and grading machine, grain cleaner machine, crop cleaning machine, mustard seed cleaning machine, oil seed cleaning equipment, grass seed cleaner, or professional grain cleaning equipment.

The working principle of the MMCTECH MCSC-002 is based on screening + air aspiration + mechanical cleaning. Product enters the machine through a controlled feeding section and first meets the air aspiration system, where lightweight impurities such as dust, chaff, empty seeds, loose skins, hulls, and low-density particles are separated from the product stream. After air separation, the product moves across the multi-layer screen system, where upper and lower screen layers classify material according to size and impurity type.

The upper screen layer removes larger foreign material, oversized impurities, stems, straw pieces, and unwanted coarse particles. The lower screen layer helps separate smaller particles, broken pieces, undersized product, and fine impurities. The upper screen layer is cleaned by agitators, while the lower screen layer is cleaned by brushes. This design helps reduce screen clogging, maintain stable product flow, and improve cleaning efficiency during continuous operation. For dusty, mixed, small, or free-flowing crops, this screen cleaning system is important for reliable performance.

The MMCTECH Combi Seed Cleaner MCSC-002 is suitable for wheat, barley, corn, rice, soybeans, sesame seed, chickpeas, lentils, sunflower seed, mustard seed, flaxseed, linseed, canola, peas, beans, grass seed, clover, alfalfa, cereal grains, oilseeds, pulses, garden seeds, vegetable seeds, and specialty agricultural products. It can be used as a standalone seed cleaner machine or integrated into a complete MMCTECH processing line with pre-cleaners, fine cleaners, screen seed graders, spiral separators, gravity separators, destoners, color sorters, conveyors, elevators, seed treaters, bagging systems, silos, and automation control panels.

The MCSC-002 is especially useful for facilities that process several crops during different seasons. A grain cleaning facility may use the machine for wheat, barley, corn, and rice. A pulse processor may use it for chickpeas, lentils, beans, and peas. An oilseed processor may use it for sunflower, sesame, mustard, canola, flaxseed, or linseed. A seed conditioning facility may use it before grading, gravity separation, color sorting, treating, packaging, or storage. This flexibility makes the MCSC-002 a practical solution for mixed-crop cleaning operations and professional seed cleaning plants.

For seed producers, clean and uniform product improves seed lot quality, seed treatment coverage, planting consistency, storage stability, and final packaging value. For grain processors, efficient cleaning improves product appearance, reduces contamination, supports better storage, and prepares the grain for downstream milling, grading, color sorting, or export. For pulse and oilseed processors, cleaning before gravity separation or optical sorting can improve final purity and reduce unnecessary load on specialized sorting equipment.

The MMCTECH MCSC-002 provides 17,637 lbs/hour (8 t/hour) wheat pre-cleaning capacity and 11,023 lbs/hour (5 t/hour) wheat fine cleaning capacity, depending on product condition, impurity level, moisture, screen selection, airflow setting, and feed rate. With a 27.1 ft² (2.52 m²) screen area, two screen layers, six motors, high air volume, and cyclone-supported aspiration, the machine is engineered for professional use in seed processing and grain cleaning operations.

The machine can be configured for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial electrical standards for North America and international markets. MMCTECH can also support layout planning, crop evaluation, equipment selection, airflow configuration, screen selection, conveyor integration, automation planning, and complete processing line design according to the customer’s crop type, facility size, capacity target, impurity level, and final product quality requirement.

Best Ideal Seed Cleaning and Grading Applications

Wheat, Barley, Corn, Rice, Soybeans, Sesame Seed, Chickpeas, Lentils, Sunflower Seed, Mustard Seed, Flaxseed, Linseed, Canola, Peas, Beans, Grass Seeds, Clover, Alfalfa, Cereal Grains, Oilseeds, Pulses, Garden Seeds, Vegetable Seeds, Free-Flowing Agricultural Products, and Specialty Crops.

Key Features of the MMCTECH MCSC-002 Combi Seed Cleaner

Combined Cleaning and Grading System: Supports seed cleaning, grain cleaning, crop cleaning, pre-cleaning, fine cleaning, and grading support in one machine.
Two Screen Layers: Includes one upper screen layer and one lower screen layer for multi-stage impurity removal.
Agitator Upper Screen Cleaning: Helps keep the upper screen open during continuous production.
Brush Lower Screen Cleaning: Reduces clogging and supports stable screening efficiency.
High Air Aspiration Capacity: Removes dust, chaff, hulls, empty seeds, light impurities, and low-density unwanted material.
High Wheat Cleaning Capacity: Provides up to 17,637 lbs/hour (8 t/hour) wheat pre-cleaning and 11,023 lbs/hour (5 t/hour) wheat fine cleaning capacity.
Multi-Crop Flexibility: Suitable for grains, pulses, oilseeds, grass seeds, cereal crops, and specialty seeds.
Professional Plant Integration: Can be integrated with MMCTECH conveyors, graders, gravity separators, color sorters, bagging systems, silos, and automation panels.
Compact Industrial Construction: Designed for modern seed cleaning plants that need reliable performance and efficient layout use.
North America Electrical Compatibility: Available for 208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz industrial standards.

Where the MCSC-002 Is Used in a Processing Line

The MMCTECH MCSC-002 can be installed after raw product intake as a pre-cleaning and fine cleaning machine. It can also be used before seed grading, gravity separation, spiral separation, color sorting, seed treating, weighing, bagging, or storage. In complete processing lines, it works as a flexible multi-crop cleaner for facilities that process grains, oilseeds, grass seeds, pulses, cereal crops, and specialty agricultural products.

Ideal Industries

Seed Processing Plants
Grain Cleaning Facilities
Commercial Crop Cleaning Facilities
Cereal Cleaning Technology Lines
Mustard Seed Cleaning Applications
Oilseed Processing Lines
Grass Seed Cleaning Operations
Pulse and Legume Processing Facilities
Seed Conditioning Facilities
Food Ingredient Processing Plants
Agricultural Cooperatives
Turnkey Seed Processing Facilities

Why Choose MMCTECH?

MMCTECH manufactures seed cleaner machines, grain cleaner machines, grain cleaning equipment, seed graders, seed separators, gravity separators, spiral separators, color sorters, conveyors, bagging systems, silos, and automation solutions for agricultural processing facilities. The MCSC-002 Series is designed for processors who need strong seed cleaning capacity, multi-crop flexibility, air aspiration, mechanical screen cleaning, reliable grading support, and integration into modern seed processing lines.

The MMCTECH Combi Seed Cleaner Machine – Classic MCSC-002 Series is a strong solution for companies searching for a grain seed cleaner machine, seed cleaning and grading machine, mustard seed cleaning machine, seed grain cleaner, seed cleaning machine, multi crop cleaning and grading machine, cereal cleaning technology, seed cleaner, oil seed cleaning equipment, seed separator, small seed cleaning machine, grain separator machine, crop cleaner, seed grader machine, wheat separator machine, grain cleaner machine, or grain cleaning equipment for professional crop processing.

MMCTECH Seed Processing Machines & Equipment with Automation Solutions

The MMCTECH Combi Seed Cleaner – Classic MCSC-002 Series is a professional multi-crop cleaning and grading system designed for wheat, corn, rice, soybeans, sesame, chickpeas, lentils, sunflower seeds, oilseeds, grass seeds, cereal grains, pulses, and free-flowing agricultural products. Equipped with multi-layer screening, air aspiration, agitator-supported upper screen cleaning, brush-supported lower screen cleaning, and compact industrial construction, the MCSC-002 provides reliable pre-cleaning and fine cleaning performance for modern seed processing plants.

Standard Table – North America and International Electrical Standards

Machine Name	Combi Seed Cleaner
Model	MCSC-002
Machine Code	MSCS-002
SKU	MCSC-002 Series
Machine Type	Combined Seed Cleaning and Grading System
Working Principle	Screening + Air Aspiration + Mechanical Cleaning
Number of Screen Layers	2 pcs
Upper Screen Layer	1 pc
Lower Screen Layer	1 pc
Cleaning of Upper Screen Layer	Agitators
Cleaning of Lower Screen Layer	Brushes
Length	199.2 in (5,060 mm)
Width	82.7 in (2,100 mm)
Height	86.6 in (2,200 mm)
Total Height with Pipe Connection	109.4 in (2,780 mm)
Diameter Pipe for Exhaust System	17.7 in (450 mm)
Cyclone Type	1750
Capacity – Wheat Pre-Cleaning	17,637 lbs/hour (8 t/hour)
Capacity – Wheat Fine Cleaning	11,023 lbs/hour (5 t/hour)
Screen Area	27.1 ft² (2.52 m²)
Air Volume 1	3,826 CFM (6,500 m³/hour)
Air Volume 2	4,591 CFM (7,800 m³/hour)
Number of Motors	6
Electrical Standards	208 / 240 / 480 / 600 VAC – 3 Phase – 50/60 Hz

The MMCTECH MCSC-002 Combi Seed Cleaner can be supplied as a standalone seed cleaner machine or integrated into a complete seed cleaning, grading, sorting, conveying, treating, storage, and bagging line. Capacity values may vary according to crop type, impurity level, moisture level, screen selection, airflow setting, feed rate, and project configuration.

Technical Documents & Project Support

Technical specifications, screen options, air aspiration requirements, cyclone configuration, upper and lower screen cleaning details, electrical standards, installation layouts, crop capacity planning, spare parts information, and project-specific engineering support for the MMCTECH MCSC-002 Combi Seed Cleaner Machine are available upon request.

MMCTECH can help evaluate your crop type, impurity level, required capacity, facility layout, automation needs, screen selection, airflow requirements, and final product quality target to recommend the most suitable seed cleaner machine, grain cleaner machine, seed grading equipment, or complete processing line.

Contact MMCTECH: Request technical information or project support

Frequently Asked Questions

Frequently Asked Questions About Combi Seed Cleaners and Seed Cleaning Machines

What is the best seed cleaner machine for my crop?

The best seed cleaner machine depends on crop type, impurity level, required capacity, seed size, moisture level, airflow requirement, screen selection, and final product quality target. Wheat, corn, rice, soybeans, sesame, chickpeas, lentils, mustard seed, oilseeds, grass seed, and cereal grains may require different cleaning settings. MMCTECH can evaluate your product and recommend the most suitable machine or complete seed processing line.

How do I choose the right grain cleaner machine?

The right grain cleaner machine is selected according to product type, impurity type, required capacity, available space, screen area, aspiration needs, electrical standard, and whether the product will go to grading, gravity separation, color sorting, seed treating, bagging, or storage.

Do I need a seed cleaner, seed grader, gravity separator, or color sorter?

Most professional seed and grain processing lines use more than one machine. A seed cleaner removes impurities, a seed grader separates by size, a gravity separator separates by density, and a color sorter removes discolored or defective product. The MCSC-002 can work as a high-capacity cleaning and grading support machine before downstream sorting equipment.

What is a combi seed cleaner?

A combi seed cleaner is a combined seed cleaning machine that uses multiple cleaning methods in one system. The MMCTECH MCSC-002 uses screening, air aspiration, upper screen agitators, lower screen brushes, and mechanical cleaning support to clean free-flowing agricultural products.

What is a multi crop cleaning and grading machine?

A multi crop cleaning and grading machine is designed to process different agricultural products with adjustable screens, airflow, and cleaning settings. The MCSC-002 can support wheat, corn, rice, soybeans, sesame, chickpeas, lentils, mustard seed, oilseeds, pulses, cereals, and specialty crops depending on screen selection and product condition.

What is the difference between seed cleaning and grading?

Seed cleaning removes impurities such as dust, chaff, hulls, broken material, light particles, and foreign material. Grading separates product according to size or quality class. The MCSC-002 supports cleaning and grading through screening, air aspiration, and mechanical screen cleaning.

What is the seed cleaning process?

The seed cleaning process usually includes feeding, air aspiration, screening, impurity removal, grading support, and final product discharge. In the MCSC-002, product passes through air aspiration and two screen layers while the upper agitators and lower brushes help maintain steady screen performance.

What is seed cleaning?

Seed cleaning is the process of removing unwanted material from seed lots to improve purity, storage quality, processing efficiency, and final product value. It can include removal of dust, chaff, broken seeds, oversized material, undersized particles, hulls, straw, and other impurities.

How does a seed cleaner work?

A seed cleaner works by separating unwanted material from the product using screens, airflow, mechanical cleaning systems, and product discharge outlets. The MMCTECH MCSC-002 uses screening, air aspiration, upper screen agitators, and lower screen brushes.

Is the MCSC-002 suitable for wheat cleaning?

Yes. The MCSC-002 is suitable for wheat pre-cleaning and fine cleaning. Listed wheat pre-cleaning capacity is 17,637 lbs/hour (8 t/hour), and listed wheat fine cleaning capacity is 11,023 lbs/hour (5 t/hour), depending on product condition and impurity level.

Can the MCSC-002 clean corn and rice?

Yes. The MCSC-002 can clean corn, rice, wheat, barley, cereal grains, and similar free-flowing agricultural products when proper screens and airflow settings are selected.

Can the MCSC-002 clean chickpeas and lentils?

Yes. The MCSC-002 can be used for chickpeas, lentils, peas, beans, and other pulse cleaning applications depending on screen perforation, airflow setting, product condition, and final cleaning target.

Can the MCSC-002 clean sesame and oilseeds?

Yes. The MCSC-002 can support sesame seed, sunflower seed, mustard seed, canola, flaxseed, linseed, soybean, and other oilseed cleaning applications with the correct screen and airflow configuration.

Can the MCSC-002 clean grass seed?

Yes. The MCSC-002 can be configured for grass seed cleaner applications when screen selection, airflow settings, and feed rate are adjusted according to the grass seed type and impurity level.

Is the MCSC-002 suitable for small seed cleaning machine applications?

Yes. Although the MCSC-002 is stronger than a basic small cleaner, it can be used for small seed cleaning applications where higher airflow, more screen area, and professional cleaning performance are required.

Can the MCSC-002 be used before a color sorter?

Yes. Cleaning before a color sorter helps remove dust, chaff, light impurities, broken material, and inconsistent particles. This can improve color sorter efficiency and final product quality.

Can the MCSC-002 be used before a gravity separator?

Yes. Pre-cleaning before gravity separation helps improve density separation performance by removing dust, light material, large impurities, and unstable product fractions before the gravity table.

Can the MCSC-002 be used in a complete seed processing line?

Yes. The MCSC-002 can be integrated into complete seed processing lines with elevators, conveyors, fine cleaners, screen graders, gravity separators, spiral separators, color sorters, seed treaters, bagging machines, silos, and automation control systems.

What is the screen area of the MCSC-002?

The MCSC-002 has a screen area of 27.1 ft² (2.52 m²).

How many screen layers does the MCSC-002 have?

The MCSC-002 has two screen layers: one upper screen layer and one lower screen layer.

How are the screens cleaned in the MCSC-002?

The upper screen layer is cleaned by agitators, while the lower screen layer is cleaned by brushes. This helps reduce clogging and supports consistent cleaning performance.

What air volume does the MCSC-002 use?

The MCSC-002 uses Air Volume 1 of 3,826 CFM (6,500 m³/hour) and Air Volume 2 of 4,591 CFM (7,800 m³/hour), depending on the air aspiration section and project configuration.

What electrical standards are available for the MCSC-002?

The MCSC-002 can be configured for 208 / 240 / 480 / 600 VAC, 3 Phase, 50/60 Hz electrical standards for U.S., Canadian, and international industrial facilities.

How is seed cleaner machine price determined?

Seed cleaner machine price depends on machine configuration, capacity requirement, screen selection, aspiration system, cyclone type, electrical standard, automation level, conveyors, installation layout, and whether the machine is supplied as a standalone unit or part of a complete processing line.

Where can I buy a combi seed cleaner?

You can contact MMCTECH to discuss the MCSC-002 Combi Seed Cleaner for wheat cleaning, corn cleaning, rice cleaning, oilseed cleaning, grass seed cleaning, mustard seed cleaning, grain cleaning equipment lines, and complete seed processing line integration.

Does MMCTECH manufacture seed cleaning machines?

Yes. MMCTECH manufactures seed cleaning machines, grain cleaner machines, seed graders, seed separators, gravity separators, spiral separators, color sorters, conveyors, bagging systems, silos, automation solutions, and complete seed processing lines for North America and international markets.
